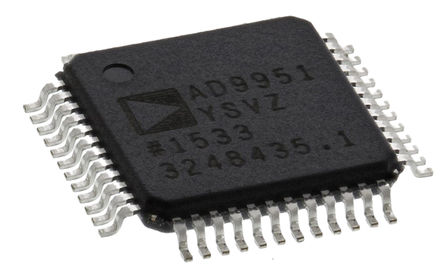

AD9951YSVZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC311944
Category:
Specialty Application IC
Package:
TQFP-48
Datasheet:
Datasheet 3D Model
Description:
Direct Digital Synthesizer 400MHz 1DAC 14Bit Serial 48Pin TQFP EP Tray
Stock Locations:
Availability:
77 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 21.98

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The AD9951YSVZ is a Direct Digital Synthesizer (DDS) featuring a 14-bit DAC operating up to 400MSPS. This uses advanced DDS technology, coupled with an internal high speed, high performance DAC to form a digitally programmable, complete high frequency synthesizer capable of generating a frequency-agile analogue output sinusoidal waveform at up to 200MHz. This is designed to provide fast frequency hopping and fine tuning resolution (32-bit frequency tuning word). The frequency tuning and control words are loaded into this via a serial I/O port.
32-bit Tuning word
Phase noise
Excellent dynamic performance
Serial I/O control
1.8V Power supply
Software and hardware controlled power-down
Support for 5V input levels on most digital inputs
Product features patented or proprietary protection circuitry, damage may occur on devices subjected to high energy ESD.

Show

AD9951YSVZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	48 Pin
Case/Package	TQFP-48
Supply Voltage (DC)	1.80 V
Number of Outputs	1 Output
Output Current	10 mA
Number of Channels	1 Channel
Number of Positions	48 Position
Number of Bits	14 Bit
Power Dissipation	171 mW
Data Rate	25.0 Mbps
Resolution (Bits)	14.0 Bit
Operating Temperature (Max)	105 ℃
Operating Temperature (Min)	-40 ℃
Number of DACs	1 DAC
Supply Voltage	1.71V ~ 1.96V
Supply Voltage (Max)	1.9 V
Supply Voltage (Min)	1.7 V
	Show
Size-Length	7 mm
Size-Width	7 mm
Size-Height	1 mm
Operating Temperature	-40℃ ~ 105℃
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
HK STC License	NLR
