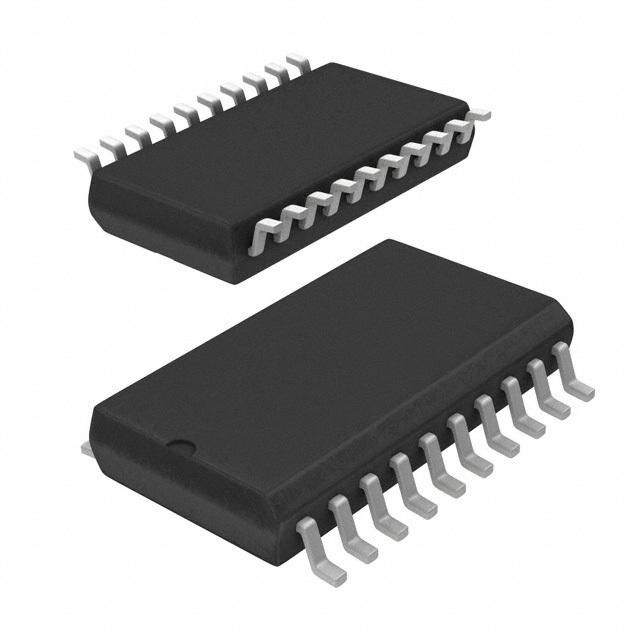

ADC0804LCWM - TI
Manufacturer:
TI
ManyChip's Part#:
MC77124192
Category:
Analog to Digital, ADC IC
Package:
SOIC-20
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS ADC0804LCWM Analogue to Digital Converter, 8Bit, 9.708KSPS, Single, 4.5V, 6.3V, SOIC
Stock Locations:
Availability:
437 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 3.28

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ADC0804LCWM is a CMOS 8-bit successive approximation Analog-to-digital Converter (ADC) that uses a differential potentiometric ladder - similar to the 256R products. This converter is designed to allow operation with the NSC800 and INS8080A derivative control bus with Tri-state output latches directly driving the data bus. These ADCs appear like memory locations or I/O ports to the microprocessor and no interfacing logic is needed. Differential analog voltage inputs allow increasing the common-mode rejection and offsetting the analog zero input voltage value. In addition, the voltage reference input can be adjusted to allow encoding any smaller analog voltage span to the full 8-bit of resolution.
Easy interface to all microprocessors or operates as a stand-alone device
Differential analog voltage inputs
Logic inputs and outputs meet both MOS and TTL voltage-level
On-chip clock generator
No zero adjust required
Green product and no Sb/Br

Show

ADC0804LCWM Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	20 Pin
Case/Package	SOIC-20
Supply Voltage (DC)	4.50V (min)
Supply Current	1.9 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	20 Position
Number of Bits	8 Bit
Power Dissipation	875 mW
Sample Rate	10 ksps
Power Consumption	9.5 mW
Number of ADCs	1 ADC
Number of Inputs	1 Input
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Power Dissipation (Max)	875 mW
Number of Input Channels	1 Channel
Supply Voltage	4.5V ~ 6.3V
Supply Voltage (Max)	6.3 V
Supply Voltage (Min)	4.5 V
Input Voltage	5 V
	Show
Size-Length	12.8 mm
Size-Width	7.47 mm
Size-Height	2.34 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
