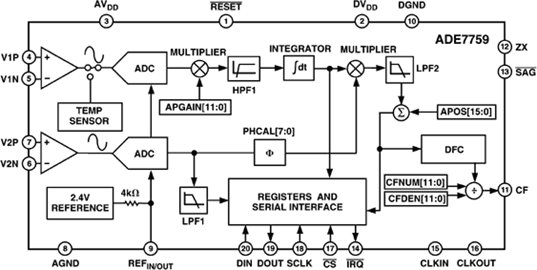

The ADE7759 is an accurate active power and energy measurement IC with a serial interface and a pulse output. The ADE7759 incorporates two second-order sigma-delta ADCs, a digital integrator (on CH1), reference circuitry, temperature sensor and all the signal processing required to perform active power and energy measurement.
An on-chip digital integrator provides direct interface to current sensors such as Rogowski coil, which have di/dt output. The digital integrator eliminates the need for external analog integrator, and this solution provides excellent long-term stability and precise phase matching between the current and voltage channels. The integrator can be switched on and off based on the current sensor selected.
The ADE7759 is available in 20-lead SSOP package, and it is pin-to-pin compatible with the ADE7753 and ADE7756.
NOTE: If your application requires the measurement of rms voltage and current, the ADE7763 is recommended.
### Features and Benefits
Exceeds IEC61036/60687
Less than 0.1% Active Energy Error Over Dynamic Range of 1000:1
Active Energy Measurement
High Frequency Pulse Output
Voltage SAG and Zero-crossing Detection
Current Sensor Interface for Current
Transformers, di/dt Sensors or Shunts
On-chip Temperature Sensor and Voltage Reference (2.4 V)
Low Power (25 mW typical)
