Image is for your reference only,please check specifications for details
- ADG1402BRMZ - ADI
-
Manufacturer:ADI
-
ManyChip's Part#:MC212779
-
Category:Analog Switch Ic, Analog Switch Multiplexer
-
Package:MSOP-8
-
Datasheet:Datasheet 3D Model
-
Description:Interface IC - analogue switches Analog Devices ADG1402BRMZ MSOP 8
-
Stock Locations:
-
Availability:230 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 2.35
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Product Details
- The ADG1401/ADG1402 contain a single-pole/single-throw (SPST) switch. Figure 1 shows that with a logic input of 1, the switch of the ADG1401 is closed and that of the ADG1402 is open. Each switch conducts equally well in both directions when on and has an input signal range that extends to the supplies. In the off condition, signal levels up to the supplies are blocked.
- The _i_CMOS® (industrial CMOS) modular manufacturing process combines high voltage, complementary metal-oxide semiconductor (CMOS) and bipolar technologies. It enables the development of a wide range of high performance analog ICs capable of 33 V operation in a footprint that no other generation of high voltage parts has achieved. Unlike analog ICs using conventional CMOS processes, _i_CMOS components can tolerate high supply voltages while providing increased performance, dramatically lower power consumption, and a reduced package size.
- The on resistance profile is very flat over the full analog input range ensuring excellent linearity and low distortion when switching audio signals. The _i_CMOS construction ensures ultralow power dissipation, making the part ideally suited for portable and battery-powered instruments.
- **PRODUCT HIGHLIGHTS**
- 1.3 Ω maximum on resistance at 25°C.
- Minimum distortion.
- 3 V logic-compatible digital inputs: VIH = 2.0 V, VIL = 0.8 V.
- No VL logic power supply required.

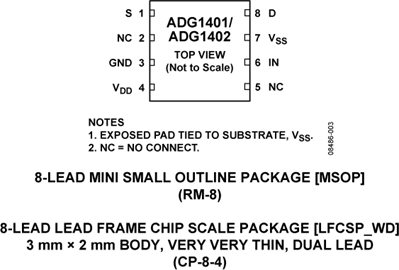

- 8-lead MSOP and 8-lead, 3 mm × 2 mm LFCSP packages.
- **APPLICATION**
- Automatic test equipment
- Data acquisition systems
- Battery-powered systems
- Sample-and-hold systems
- Audio signal routing
- Video signal routing
- Communication systems
- Relay replacements
- ### Features and Benefits
- 1 Ω on resistance
- 0.2 Ω on resistance flatness
- Up to 435 mA continuous current
- Fully specified at +12 V, ±15 V,
- ±5 V
- No VL supply required
- 3 V logic-compatible inputs
- Rail-to-rail operation
- 8-lead MSOP and 8-lead,
- 3 mm × 2 mm LFCSP packages
ADG1402BRMZ Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | MSOP-8 |
| Number of Outputs | 1 Output |
| Supply Current | 60 µA |
| Number of Circuits | 1 Circuit |
| Number of Channels | 1 Channel |
| Number of Positions | 8 Position |
| Power Dissipation | 1.44 mW |
| Bandwidth | 120 MHz |
| Number of Inputs | 1 Input |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| 3dB Bandwidth | 120 MHz |
| Supply Voltage (Max) | 16.5 V |
| Supply Voltage (Min) | 16.5 V |
| Show | |
| Size-Length | 3.2 mm |
| Size-Width | 3.2 mm |
| Size-Height | 0.95 mm |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance Edition | 2015/12/17 |
