Image is for your reference only,please check specifications for details
- ADG1423BRMZ - ADI
-
Manufacturer:ADI
-
ManyChip's Part#:MC2025923
-
Category:Analog Switch Ic, Analog Switch Multiplexer
-
Package:MSOP-10
-
Datasheet:Datasheet 3D Model
-
Description:ANALOG DEVICES ADG1423BRMZ Analog Switch, Dual Channel, SPST, 2Channels, 2.1Ω, 4.5V to 16.5V, MSOP, 10Pins
-
Stock Locations:
-
Availability:256 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.95
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Product Details

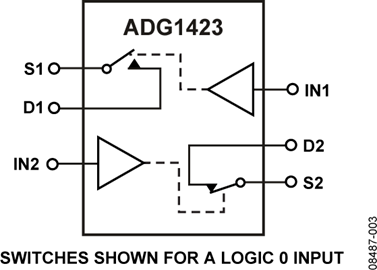

- The ADG1421/ADG1422/ADG1423 contain two independent single-pole/single-throw (SPST) switches. The ADG1421 and ADG1422 differ only in that the digital control logic is inverted. The ADG1421 switches are turned on with Logic 1 on the appropriate control input, and Logic 0 is required for the ADG1422. The ADG1423 has one switch with digital control logic similar to that of the ADG1421; the logic is inverted on the other switch. The ADG1423 exhibits break-before-make switching action for use in multiplexer applications. Each switch conducts equally well in both directions when on and has an input signal range that extends to the supplies. In the off condition, signal levels up to the supplies are blocked.
- The iCMOS® (industrial CMOS) modular manufacturing process combines high voltage, complementary metal-oxide semiconductor (CMOS) and bipolar technologies. It enables the development of a wide range of high performance analog ICs capable of 33 V operation in a footprint that no other generation of high voltage parts has achieved. Unlike analog ICs using conventional CMOS processes, iCMOS components can tolerate high supply voltages while providing increased performance, dramatically lower power consumption, and reduced package size.
- The on resistance profile is very flat over the full analog input range ensuring excellent linearity and low distortion when switching audio signals. The iCMOS construction ensures ultralow power dissipation, making the part ideally suited for portable and battery-powered instruments.
- **PRODUCT HIGHLIGHTS**
- ****
- 2.4 Ω maximum on resistance at 25°C.
- Minimum distortion.
- 3 V logic-compatible digital inputs: VINH = 2.0 V, VINL = 0.8 V.
- No VL logic power supply required.
- 10-lead MSOP and 10-lead, 3 mm × 3 mm LFCSP packages.
- **APPLICATION**
- Automatic test equipment
- Data acquisition systems
- Relay replacements
- Battery-powered systems
- Sample-and-hold systems
- Audio signal routing
- Video signal routing
- Communication systems
- ### Features and Benefits
- 2.1 Ω maximum on resistance
- 0.5 Ω maximum on resistance flatness
- Up to 250 mA continuous current
- Fully specified at +12 V, ±15 V,
- ±5 V
- No VL supply required
- 3 V logic-compatible inputs
- Rail-to-rail operation
- 10-lead MSOP and 10-lead,
- 3 mm × 3 mm LFCSP packages
ADG1423BRMZ Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 10 Pin |
| Case/Package | MSOP-10 |
| Number of Outputs | 2 Output |
| Supply Current | 120 µA |
| Number of Circuits | 2 Circuit |
| Number of Channels | 2 Channel |
| Number of Positions | 10 Position |
| Power Dissipation | 1.80 mW |
| Bandwidth | 180 MHz |
| Number of Inputs | 2 Input |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| 3dB Bandwidth | 180 MHz |
| Supply Voltage | 4.5V ~ 16.5V |
| Show | |
| Size-Length | 3.1 mm |
| Size-Width | 3.1 mm |
| Size-Height | 1.1 mm |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance Edition | 2015/12/17 |
| ECCN Code | EAR99 |
