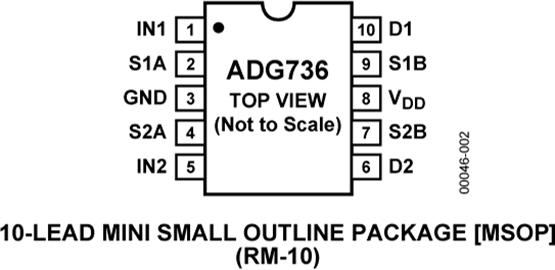

Image is for your reference only,please check specifications for details
- ADG736BRMZ - ADI
-
Manufacturer:ADI
-
ManyChip's Part#:MC124800
-
Category:Analog Switch Ic, Analog Switch Multiplexer
-
Package:MSOP-10
-
Datasheet:Datasheet 3D Model
-
Description:ANALOG DEVICES ADG736BRMZ Analog Switch, Dual Channel, SPDT, 2Channels, 4Ω, 1.8V to 5.5V, MSOP, 10Pins
-
Stock Locations:
-
Availability:9,952 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.56
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The ADG736BRMZ is a CMOS Low Voltage Dual SPDT Switch designed using a submicron process that provides low power dissipation yet gives high switching speed, low on resistance, low leakage currents and wide input signal bandwidth. The on resistance profile is very flat over the full analogue signal range. This ensures excellent linearity and low distortion when switching audio signals. Fast switching speed also makes the part suitable for video signal switching. The ADG736 operates from a single 1.8 to 5.5V supply, making it ideally suited to portable and battery-powered instruments. Each switch conducts equally well in both directions when on and each has an input signal range that extends to the power supplies. The switch exhibits break-before-make switching action.
- 2.5R Typical on-resistance
- Low on resistance flatness
- -3dB Bandwidth (>200MHz)
- Rail-to-rail operation
- Fast switching times
- <0.01µW Typical power consumption
- TTL-/CMOS-compatible
- ESD sensitive device, take proper precaution while handling the device.
ADG736BRMZ Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 10 Pin |
| Case/Package (SI) | SOP |
| Case/Package | MSOP-10 |
| Supply Voltage (DC) | 5.50V (max) |
| Number of Outputs | 4 Output |
| Contacts Type | SPDT |
| Supply Current | 1 nA |
| Number of Circuits | 2 Circuit |
| Number of Channels | 2 Channel |
| Number of Positions | 10 Position |
| Drain to Source Resistance (on) (Rds) | 35 Ω |
| Number of Bits | 2 Bit |
| Power Dissipation | 315 mW |
| Bandwidth | 200 MHz |
| Number of Inputs | 2 Input |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| 3dB Bandwidth | 200 MHz |
| Power Dissipation (Max) | 315 mW |
| Supply Voltage | 1.8V ~ 5.5V |
| Supply Voltage (Max) | 5.5 V |
| Supply Voltage (Min) | 1.8 V |
| Show | |
| Size-Length | 3 mm |
| Size-Width | 3 mm |
| Size-Height | 0.85 mm |
| Operating Temperature | -40℃ ~ 125℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Contains Lead |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/12/17 |
| ECCN Code | EAR99 |
