ADIS16209CCCZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC255346
Category:
Acceleration Sensor, Accelerometer
Package:
LGA-16
Datasheet:
Datasheet 3D Model
Description:
Analog Devices ADIS16209CCCZ 2-Axis Accelerometer Ic, 50Hz, 3 3.6V 16Pin LGA
Stock Locations:
Availability:
260 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 118.45

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

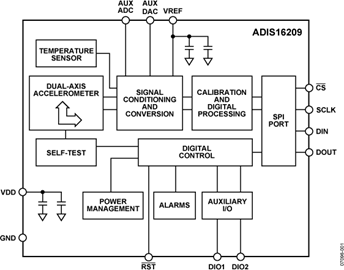

The ADIS16209CCCZ is a High Accuracy Digital Inclinometer and Accelerometer that accommodates both single-axis (±180°) and dual-axis (±90°) operation. The standard supply voltage (3.3V) and serial peripheral interface (SPI) enable simple integration into most industrial system designs. A simple internal register structure handles all output data and configuration features. This includes access to the following output data: calibrated acceleration, accurate incline angles, power supply, internal temperature, auxiliary analogue and digital input signals, diagnostic error flags and programmable alarm conditions. Configurable operating parameters include sample rate, power management, digital filtering, auxiliary analogue and digital output, offset/null adjustment and self-test for sensor mechanical structure.
Dual-mode inclinometer system
High accuracy (0.1°)
Digital inclination data (0.025° resolution)
Digital acceleration data (0.244mg resolution)
±1.7g Accelerometer measurement range
Digital temperature sensor output
Digitally controlled bias calibration
Digitally controlled sample rate
Digitally controlled frequency response
Dual alarm settings with rate/threshold limits
Auxiliary digital I/O
Digitally activated self-test
Digitally activated low power mode
SPI-compatible serial interface
Auxiliary 12-bit ADC input and DAC output
ESD sensitive device, take proper precaution while handling the device.

Show

ADIS16209CCCZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	LGA-16
Supply Voltage (DC)	3.00V (min)
Supply Current	11 mA
Number of Positions	16 Position
Number of Bits	12 Bit
Bandwidth	50 Hz
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating	3V ~ 3.6V
Supply Voltage	3.3 V
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	3 V
	Show
Size-Length	9.35 mm
Size-Width	9.2 mm
Size-Height	3.9 mm
Operating Temperature	-40℃ ~ 125℃ (TA)
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2013/06/20
ECCN Code	EAR99
