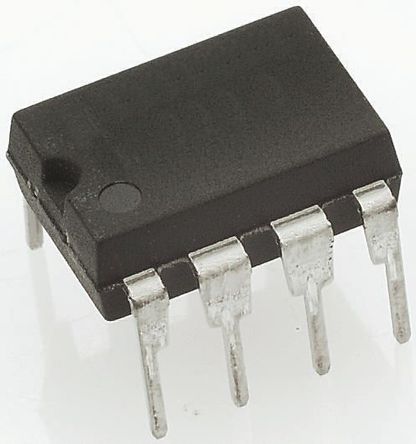

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The ADM1232 series Microprocessor Supervisory Circuit for use with intelligent instruments. The ADM1232 is pin-compatible with the MAX1232, DS1232LP and DS1232. The Analog Devices, Inc., ADM1232 is a micro-processor monitoring circuit that can monitor the microprocessor supply voltage, whether a microprocessor has locked up and external interrupts.
- Adjustable strobe monitor
- Adjustable precision voltage monitor
ADM1232ANZ Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 8 Pin |
| Case/Package | DIP-8 |
| Supply Voltage (DC) | 4.50V (min) |
| Power Rating | 1 W |
| Supply Current | 0.5 mA |
| Number of Positions | 8 Position |
| Power Dissipation | 1000 mW |
| Threshold Voltage | 4.62 V |
| Output Current (Max) | 10 mA |
| Reset Threshold Voltage (Min) | 4.5V, 4.25V |
| Reset Threshold Voltage (Max) | 4.74V, 4.49V |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 1000 mW |
| Supply Voltage | 5 V |
| Supply Voltage (Max) | 5.5 V |
| Supply Voltage (Min) | 4.5 V |
| Show | |
| Size-Length | 9.27 mm |
| Size-Width | 7.24 mm |
| Size-Height | 3.43 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Contains Lead |
| REACH SVHC Compliance | No SVHC |
| Mil-Spec | No |
| REACH SVHC Compliance Edition | 2015/12/17 |
