Charge Pump Driven 9Channel LED Driver with Automated LED Lighting Effects
Stock Locations:
Availability:
297 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0
Updated at 02/06/2024 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
Product Details

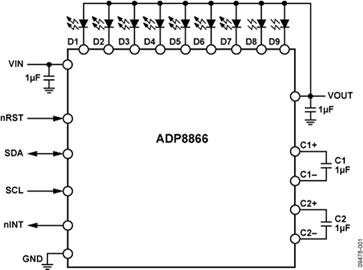

The ADP8866 combines a programmable backlight LED charge pump driver with automatic blinking functions. Nine LED drivers can be independently programmed at currents up to 25 mA. The current level, fade time, and blinking rate can be programmed once and executed autonomously on a loop. Separate fade in and out times can be set for the backlight LEDs.
Driving all of this is a two capacitor charge pump with gains of 1×, 1.5×, and 2×. This setup is capable of driving a maximum IOUT of 240 mA from a supply of 2.5 V to 5.5 V. A full suite of safety features including short-circuit, overvoltage, and over-temperature protection allow easy implementation of a safe and robust design. Additionally, input inrush currents are limited via an integrated soft start combined with controlled input to output isolation.
### Features and Benefits
Charge pump with automatic gain selection of 1x, 1.5x, and 2x for maximum efficiency.
92% peak efficiency
9 independent and programmable LED drivers
Each driver capable of 25 mA (full scale)
Each driver has 7 bits (128 levels) of non-linear current settings
Standby mode for <1 μA current consumption
16 programmable fade in and fade out times (0.0 sec to 1.75 sec) with choice of square or cubic rates
Automated and customizable LED blinking for all 9 channels.
Unique heartbeat mode for customizable double pulse lighting effects
PWM input for implementing content adjustable brightness control (CABC)
I2C compatible interface for all programming
Dedicated reset pin and built-in power on reset (POR)
Short circuit, overvoltage, and overtemperature protection
Internal soft start to limit inrush currents
Input to output isolation during faults or shutdown
Operates down to VIN = 2.5 V, with undervoltage lockout (UVLO) at 2.0 V
