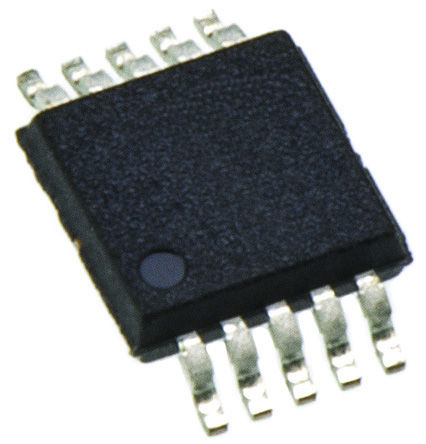

Image is for your reference only,please check specifications for details

ADS8319IDGST - TI
Manufacturer:
TI
ManyChip's Part#:
MC40487063
Category:
Analog to Digital, ADC IC
Package:
VSSOP-10
Datasheet:
Datasheet 3D Model
Description:
Analog to Digital Converter Precision 16Bit SAR w/ SPI interface in MSOP-10 Single ADC SAR 500KSPS 16Bit Serial 10Pin VSSOP T/R
Stock Locations:
Availability:
204 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 8.59

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ADS8319IDGST is a 12-bit Analogue-to-digital Converter operates with a 2.25 to 5.5V external reference. The device includes a capacitor based, SAR A/D converter with inherent sample and hold. The ADC includes a 50MHz SPI compatible serial interface. The interface is designed to support daisy chaining or cascading of multiple devices. Also a Busy Indicator makes it easy to synchronize with the digital host. The precision 500kSPS ADS8319 unipolar single-ended input range supports an input swing of 0V to +Vref. Device operation is optimized for very low power operation and the power consumption directly scales with speed. This feature makes it attractive for lower speed applications.
Zero latency at full speed
0V to Vref Range unipolar single-ended input
0.25µW Typical power dissipation during power-down state
Green product and no Sb/Br
ESD sensitive device, take proper precaution while handling the device.

Show

ADS8319IDGST Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	10 Pin
Case/Package	VSSOP-10
Supply Voltage (DC)	4.50V (min)
Supply Current	3.60 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	10 Position
Number of Bits	16 Bit
Power Dissipation	18 mW
Sample Rate	500 ksps
Power Consumption	18 mW
Number of ADCs	1 ADC
Number of Inputs	1 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	22.5 mW
Number of Input Channels	1 Channel
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	4.5 V
Input Voltage	4.096 V
	Show
Size-Length	3 mm
Size-Width	3 mm
Size-Height	1.02 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
