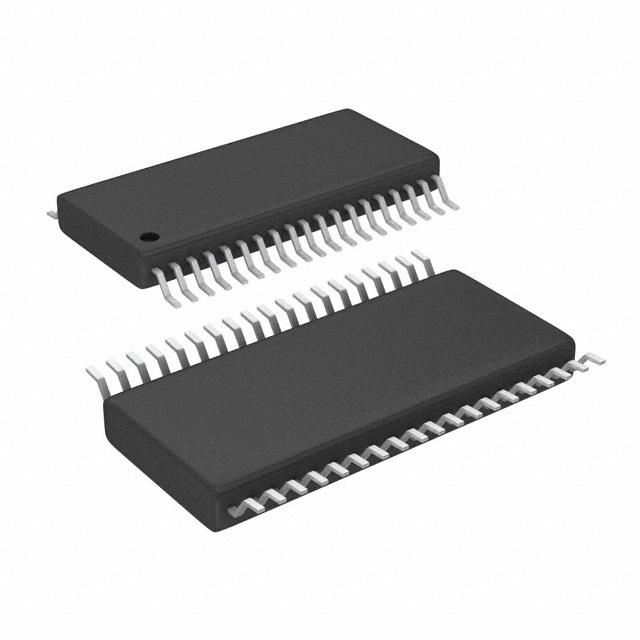

Image is for your reference only,please check specifications for details

ADS8688AIDBT - TI
Manufacturer:
TI
ManyChip's Part#:
MC22067315
Category:
Analog to Digital, ADC IC
Package:
TSSOP-38
Datasheet:
Datasheet 3D Model
Description:
Analog to Digital Converters - ADC 16Bit SAR ADC, 8Channels, 500KSPS, and bipolar inputs off +5V supply 38-TSSOP -40℃ to 125℃
Stock Locations:
Availability:
283 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 20.46

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ADS8684A and ADS8688A are 4- and 8-channel, integrated data acquisition systems based on a 16-bit successive approximation (SAR) analog-to-digital converter (ADC), operating at a throughput of 500 kSPS. The devices feature integrated analog front-end circuitry for each input channel with overvoltage protection up to ±20 V, a 4- or 8-channel multiplexer with automatic and manual scanning modes, and an on-chip, 4.096-V reference with low temperature drift. Operating on a single 5-V analog supply, each input channel on the devices can support true bipolar input ranges of ±10.24 V, ±5.12 V, ±2.56 V, ±1.28V and ±0.64V, as well as unipolar input ranges of 0 V to 10.24 V, 0 V to 5.12 V, 0 V to 2.56 V and 0 V to 1.28 V. The gain of the analog front-end for all input ranges is accurately trimmed to ensure a high dc precision. The input range selection is software-programmable and independent for each channel. The devices offer a 1-MΩ constant resistive input impedance irrespective of the selected input range.
The ADS8684A and ADS8688A offer a simple SPI-compatible serial interface to the digital host and also support daisy-chaining of multiple devices. The digital supply operates from 1.65 V to 5.25 V, enabling direct interface to a wide range of host controllers.

Show

ADS8688AIDBT Specifications
