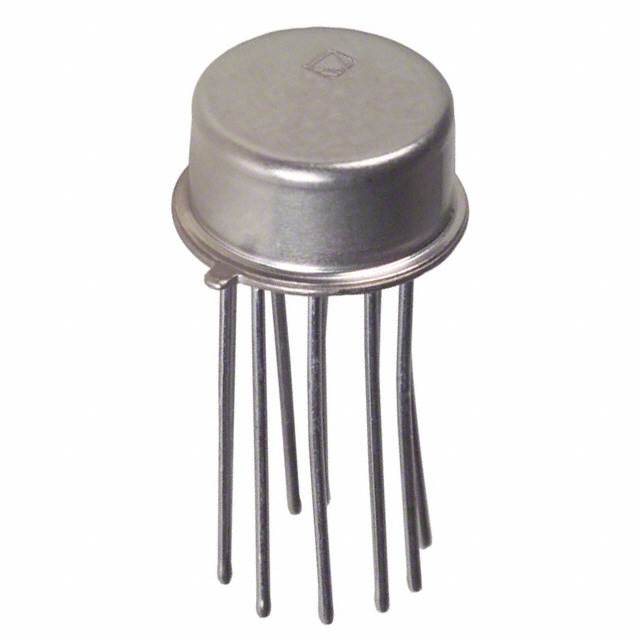

- ADVFC32BH - ADI
-
Manufacturer:ADI
-
ManyChip's Part#:MC443046
-
Category:Analog to Digital, ADC IC
-
Package:TO-100-10
-
Datasheet:Datasheet 3D Model
-
Description:ANALOG DEVICES ADVFC32BH Voltage to Frequency Converter, 500kHz, 0Hz to 500kHz, 0.005%, ± 9V to ± 18V, TO-100, 10Pins
-
Stock Locations:
-
Availability:283 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 70.03
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Product Details
- The industry standard ADVFC32 is a low cost monolithic voltage-to-frequency (V/F) converter or frequency-to-voltage (F/V) converter with good linearity (0.01% max error at 10 kHz) and operating frequency up to 0.5 MHz. In the V/F configuration, positive or negative input voltages or currents can be converted to a proportional frequency using only a few external components. For F/V conversion, the same components are used with a simple biasing network to accommodate a wide range of input logic levels.
- TTL or CMOS compatibility is achieved in the V/F operating mode using an open collector frequency output. The pullup resistor can be connected to voltages up to 30 volts, or to +15 V or +5 V for conventional CMOS or TTL logic levels. This resistor should be chosen to limit current through the open collector output to 8 mA. A larger resistance can be used if driving a high impedance load.
- Input offset drift is only 3ppm of full scale per °C, and full-scale calibration drift is held to a maximum of 100 ppm/°C (ADVFC32BH) due to a low T.C. Zener diode.
- The ADVFC32 is available in commercial, industrial, and extended temperature grades. The commercial grade is packaged in a 14-pin plastic DIP while the two wider temperature range parts are packaged in hermetically sealed TO-100 cans.
- ### Features and Benefits
- High Linearity
- ±0.01%Max at 10 kHz FS
- ±0.05%Max at 100 kHz FS
- ±0.2%Max at 500 kHz FS
- Output TTL/CMOS-Compatible
- V/F or F/V Conversion
- 6 Decade Dynamic Range
- Voltage or Current Input
- Reliable Monolithic Construction
- MIL-STD-883-Compliant Versions Available
ADVFC32BH Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 10 Pin |
| Case/Package | TO-100-10 |
| Frequency | 500 kHz |
| Supply Current | 8.00 mA |
| Number of Positions | 10 Position |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -25 ℃ |
| Show | |
| Product Lifecycle Status | Active |
| Packaging | Each |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
| REACH SVHC Compliance Edition | 2015/12/17 |
| ECCN Code | EAR99 |
