ADT7516ARQZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC157861
Category:
Temperature Sensor
Package:
QSOP-16
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES ADT7516ARQZ Temperature Sensor IC, Voltage, ± 0.5℃, QSOP, 16Pins
Stock Locations:
Availability:
293 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 8.04

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

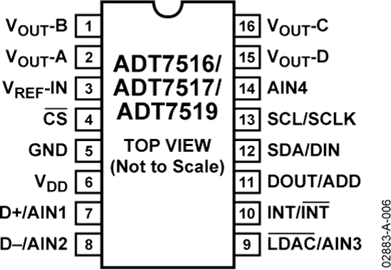

The ADT7516 series 10-bit Temperature-to-Digital Converter with a 10-bit 4-channel ADC and a quad 12-bit DAC in a single IC. The parts also include a band gap temperature sensor and a 10-bit ADC to monitor and digitize the temperature reading to a resolution of 0.25°C. The input voltage range on the ADC channels is 0 V to 2.28 V and the input bandwidth is dc. The reference for the ADC channels is derived internally. The output voltage of the DAC ranges from 0V to VDD, with an output voltage settling time of 7µs typical. The ADT7516 provides two serial interface options: a 4-wire serial interface that is compatible with SPI, QSPI, MICROWIRE and DSP interface standards and a 2-wire SMBus/I²C interface. They feature a standby mode that is controlled through the serial interface. The reference for the four DACs is derived either internally or from a reference pin. The outputs of all DACs can be updated simultaneously using the software LDAC function or the external LDAC pin.
Buffered voltage output
Guaranteed monotonic by design over all codes
<10µA Power-down current
Internal 2.28VREF option
Double-buffered input logic
Buffered reference input
power-ON reset to 0V DAC output
On-chip, rail-to-rail output buffer amplifier
4-wire Serial interface

Show

ADT7516ARQZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	QSOP-16
Supply Voltage (DC)	2.70V (min)
Supply Current	3 mA
Number of Positions	16 Position
Number of Bits	12 Bit
Power Dissipation	10 mW
Resolution (Bits)	10.0 Bit
Operating Temperature (Max)	120 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	10 mW
Accuracy	±5℃ (Max)
Supply Voltage	2.7V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	2.7 V
	Show
Operating Temperature	-40℃ ~ 120℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
