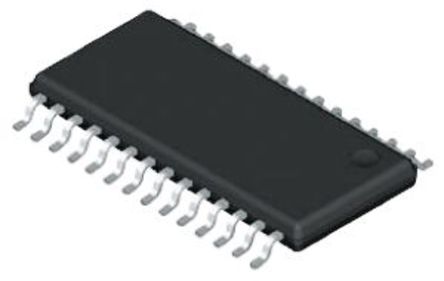

Image is for your reference only,please check specifications for details
- ADUC814ARUZ - ADI
-
Manufacturer:ADI
-
ManyChip's Part#:MC773959
-
Category:Microcontroller, MCU IC
-
Package:TSSOP-28
-
Datasheet:Datasheet 3D Model
-
Description:ANALOG DEVICES ADUC814ARUZ 8Bit Microcontroller, MicroConverter with ADC, ADuC8xx, 16.78MHz, 8KB, 256Byte, 28Pins, TSSOP
-
Stock Locations:
-
Availability:459 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 7.66
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The ADUC814ARUZ is a fully integrated 247kSPS 8-bit Programmable Microcontroller incorporates a high performance multichannel ADC and program/data flash/EE memory on a single chip. This low power device operates from a 32kHz crystal with an on-chip PLL generating a high frequency clock of 16.78MHz. This clock is, in turn, routed through a programmable clock divider from which the MCU core clock operating frequency is generated. The microcontroller core is an 8052 and is compatible with an 8051 instruction. 8kB of nonvolatile Flash/EE program memory are provided on-chip. 640byte of nonvolatile Flash/EE data memory and 256byte RAM are also integrated on-chip. The ADuC814 also incorporates additional analog functionality with dual 12-bit DACs, a power supply monitor and a band gap reference. On-chip digital peripherals include a watchdog timer, time interval counter, three timer/counters and two serial I/O ports (SPI and UART).
- 6-channel 247kSPS 12-bit ADC
- ADC high speed data capture mode
- Programmable reference via on-chip DAC for low level inputs
- Dual voltage output DACs - 12-bit resolution, 15µs settling time
- Flash/EE, 100 years retention, 100k cycles endurance
- 3 Levels of flash/EE program memory security
- In-circuit serial download (no external hardware)
- 8051 Compatible instruction set
- 32kHz External crystal, on-chip programmable PLL (16.78MHz Maximum)
- Three 16-bit timers/counters
- 11 Programmable I/O lines
- 11 Interrupt sources, 2 priority levels
- 3mA at 3V (core CLK = 2.1MHz) Normal power consumption
- Power-on reset circuit (no need for external POR device)
- Temperature monitor (±1.5°C accuracy)
- Precision voltage reference
- Time interval counter (wake-up/RTC timer)
- Watchdog timer (WDT), power supply monitor (PSM)
ADUC814ARUZ Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 28 Pin |
| Case/Package | TSSOP-28 |
| Frequency | 16.78 MHz |
| Supply Voltage (DC) | 5.00 V, 5.50 V (max) |
| Number of Positions | 28 Position |
| Clock Speed | 16.8MHz (max) |
| RAM Memory Size | 256 B |
| Number of Bits | 8 Bit |
| Resolution (Bits) | 12.0 Bit |
| FLASH Memory Size | 8192 B |
| Number of I/O Pins | 17 IO |
| Access Time | 16.8 µs |
| Core Architecture | 8052 |
| Memory Size | 8000 B |
| Number of ADCs | 1 ADC |
| Number of Inputs and Outputs | 11 Input IO |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Number of DACs | 1 DAC |
| Supply Voltage (Max) | 3.3 V |
| Supply Voltage (Min) | 2.7 V |
| Show | |
| Size-Length | 9.8 mm |
| Size-Width | 4.5 mm |
| Size-Height | 1.05 mm |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Each |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2016/06/20 |
