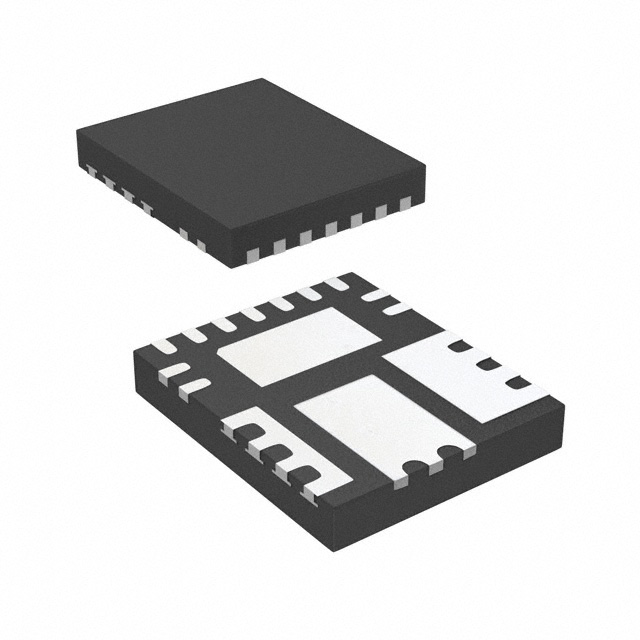

Image is for your reference only,please check specifications for details
- IR3820MTRPBF - Infineon Technologies AG
-
Manufacturer:Infineon Technologies AG
-
ManyChip's Part#:MC17077193
-
Category:Voltage Regulators
-
Package:QFN-15
-
Datasheet:Datasheet 3D Model
-
Description:Прибор для переключения напряжений DC-DC от 2,5 В до 21 В с одним выходом, напряжение на выходе составляет 0,6 В до 12 В, мощность – 12 А, формат патрона – 14-пиновый QFN EP T/R.
-
Stock Locations:
-
Availability:10,467 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 5.8
Updated at 01/11/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- 》
- Регуляторный интегральный чип для переключения напряжений типа “Buck”, с положительной регулируемой отдачей, выходное напряжение – 0,6 В, мощность – 12 А, формат патрона – 15-пиновый QFN.
IR3820MTRPBF Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 14 Pin |
| Case/Package | QFN-15 |
| Frequency | 600 kHz |
| Operating Voltage | 2.5V ~ 21V |
| Power Rating | 3.7 W |
| Number of Outputs | 1 Output |
| Output Voltage | 0.6V ~ 12V |
| Output Current | 12 A |
| Number of Channels | 1 Channel |
| Switching Frequency | 600 kHz |
| Input Voltage (Max) | 21 V |
| Input Voltage (Min) | 2.5 V |
| Output Voltage (Max) | 12 V |
| Output Voltage (Min) | 0.6 V |
| Output Current (Max) | 12 A |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Input Voltage | 2.5.21 V |
| Show | |
| Operating Temperature | -40℃ ~ 125℃ (TJ) |
| Product Lifecycle Status | Obsolete |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
