ADUM5411 - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC760402089
Datasheet:
Datasheet 3D Model
Description:
Robust 2.5kV rms Quad-Channel Isolator with Integrated DC-to-DC Converter & 1 Reverse Channel
Stock Locations:
Availability:
318 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Product Details
The ADuM5410/ADuM5411/ADuM5412 are quad-channel digital isolators with isoPower®, integrated, isolated dc-to-dc converters. Based on the Analog Devices, Inc., iCoupler® technology, the dc-to-dc converters provide regulated, isolated power that is adjustable between 3.15 V and 5.25 V.
The ADuM5410/ADuM5411/ADuM5412 eliminate the need for a separate, isolated dc-to-dc converter in low power, isolated designs. The iCoupler chip scale transformer technology is used for isolated logic signals and for the magnetic components of the dc-to-dc converters. The result is a small form factor, total isolation solution.
The ADuM5410/ADuM5411/ADuM5412 isolators provide four independent isolation channels in a variety of channel configurations and data rates (see the Ordering Guide for more information).
**Applications**
RS-232 transceivers
Power supply startup bias and gate drives
Isolated sensor interfaces
Industrial PLCs
### Features and Benefits
isoPower integrated, isolated dc-to-dc converter
Up to 150 mW output power
Quad dc to 150 Mbps signal isolation channels

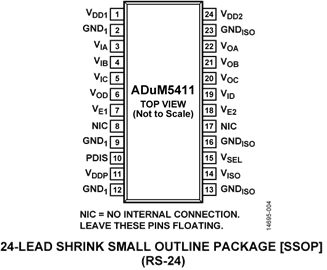

24-lead SSOP package with 5.3 mm minimum creepage
High temperature operation: 105°C
High common-mode transient immunity: 100 kV/μs
Safety and regulatory approvals
UL recognition (pending)
– 2500 V rms for 1 minute per UL 1577
CSA Component Acceptance Notice 5A (pending)
VDE certificate of conformity (pending)
– DIN V VDE V 0884-10 (VDE V 0884-10):2006-12
– VIORM = 565 V peak

Show
