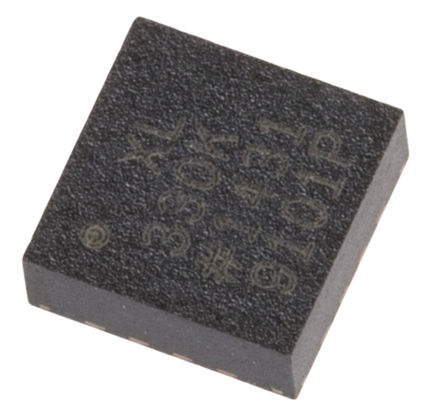

ADXL330KCPZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC59395343
Category:
Acceleration Sensor, Accelerometer
Package:
LFCSP-16
Datasheet:
Datasheet 3D Model
Description:
Accelerometer Triple ±3g 2.5V/3.3V 270mV/g to 330mV/g 16Pin LFCSP EP
Stock Locations:
Availability:
245 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 5.12

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ADXL330KCPZ is a three axis iMEMS accelerometer in 16 pin LFCSP package. This accelerometer with signal conditioned voltage outputs measures acceleration with minimum full scale range of ±3g. It can measure static acceleration of gravity in tilt sensing applications as well as dynamic acceleration resulting from motion, shock or vibration. The user selects bandwidth of accelerometer using CX, CY and CZ capacitors at XOUT, YOUT and ZOUT pins. Bandwidths can be selected to suit application with a range of 0.5Hz to 1600Hz for X and Y axis and range of 0.5Hz to 550Hz for Z axis.
Specified voltage of 3V
Small, low profile package
Low power (180µA at VS = 1.8V)
Single supply operation from 1.8V to 3.6V
10000g shock survival
Excellent temperature stability
Sensitivity (ratiomatric) of 300mV/g at XOUT, YOUT, ZOUT
Bandwidth of 1600Hz (XOUT, YOUT) and 550Hz (ZOUT) without external filter
Operating temperature range from -25°C to 70°C
ESD (electrostatic discharge) sensitive device. Proper ESD precautions are recommended to avoid performance degradation or loss of functionality.

Show

ADXL330KCPZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	LFCSP-16
Frequency	550 Hz
Supply Voltage (DC)	3.60V (max)
Supply Current	180 µA
Number of Positions	16 Position
Number of Bits	330 Bit
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	-25 ℃
Supply Voltage	1.8V ~ 3.6V
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	1.8 V
Input Voltage	1.8.3.6 V
	Show
Size-Length	4 mm
Size-Width	4 mm
Size-Height	1.43 mm
Operating Temperature	-25℃ ~ 70℃
Product Lifecycle Status	End of Life
Packaging	Each
RoHS	Compliant with Exemption
Lead-Free Status	Contains Lead
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
