AGN200A12 - Panasonic
Manufacturer:
Panasonic
ManyChip's Part#:
MC11607782
Category:
Industrial Relay
Package:
SMD
Datasheet:
Datasheet 3D Model
Description:

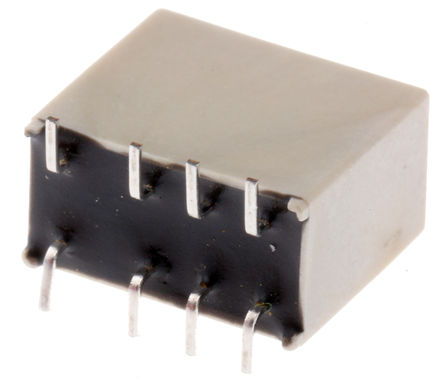

Electromechanical Relay 12VDC 1.028KΩ 1A DPDT(10.6mm 7.4mm 10mm) SMD General Purpose Relay
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The AGN series high sensitivity Signal Relay with 100mW nominal operating power in a compact and space saving case. The use of twin crossbar contacts ensures high contact reliability. AgPd contact is used because of its good sulphide resistance and adopting low-gas moulding material. Coil assembly moulding technology which avoids generating volatile gas from coil. Due to highly efficient magnetic circuit design, leakage flux is reduced and changes in electrical characteristics from components being mounted close-together are minimized. This all means a packaging density higher than ever before.
Compact slim body saves space
High sensitivity single side stable type (Nominal operating power - 100mW) is available
Outstanding surge resistance
The use of twin crossbar contacts ensures high contact reliability
Outstanding vibration and shock resistance
Sealed construction allows automatic washing

Show

AGN200A12 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SMD
Voltage Rating (DC)	110 V
Voltage Rating (AC)	125 V
Current Rating	1 A
Power Rating	30 W
Contacts Type	DPDT
Power Consumption	140 mW
Contact Current Rating	1 A
Coil Voltage	12 VDC
Coil Current	11.7 mA
Coil Power (DC)	140 mW
Coil Resistance	1.028 kΩ
Carry Current	1.00 A
Current Rating (Max)	1 A
Coil Voltage (DC)	12 V
Coil Power	140 mW
Input Power (Max)	30W, 37.5VA
Switching Current (Max)	1 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating	125 VAC
	Show
Size-Length	10.6 mm
Size-Width	10 mm
Size-Height	10 mm
Contact Material	Silver Palladium
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
HTS Code	8536490050
ECCN Code	EAR99
