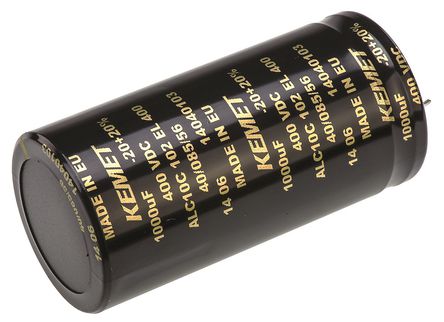

Image is for your reference only,please check specifications for details

ALC10C102EL400 - KEMET Corporation
Manufacturer:
KEMET Corporation
ManyChip's Part#:
MC58476800
Category:
Aluminum Electrolytic Capacitors, Aluminum Capacitors, Capacitors Aluminum
Package:
Snap-In
Datasheet:
Datasheet 3D Model
Description:
1mF ±20% 400V 5A(100Hz) Φ40mm
Stock Locations:
Availability:
284 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 13.19

Updated at 18/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ALC10C102EL400 is an aluminium Electrolytic Capacitor with 4-pin snap-in termination (6.3 ±1mm). The snap-in capacitor covers a wide range of case sizes and voltage ratings. The ALC10 series is designed for high voltage, high ripple current applications and features surge voltage capability and very long life performance.
Compact size
Excellent surge voltage capability
78mR at 10kHz/20°C Maximum impedance

Show

ALC10C102EL400 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	4 Pin
Case/Package	Snap-In
Pin Pitch	22.5 mm
Voltage Rating (DC)	400 V
Capacitance	1000 µF
Equivalent Series Resistance (ESR)	120 mΩ
Capacitance Tolerance	±20 %
Part Family	ALC10
Test Frequency	100 Hz
Ripple Current	5A @100Hz
Ripple Current (Low Frequency)	5A @100Hz
Ripple Current (High Frequency)	8.82A @10kHz
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating	400 V
	Show
Size-Length	80 mm
Size-Height	80 mm
Size-Diameter	40.0 mm
Lead Length	6.3 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Bulk
Life (Hours)	18000 h
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
