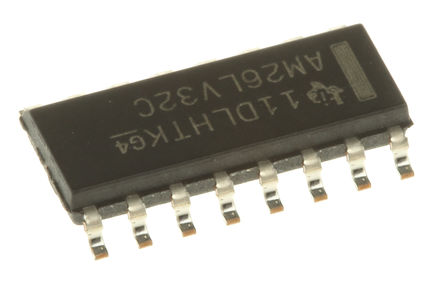

AM26LV32CD - TI
Manufacturer:
TI
ManyChip's Part#:
MC11128084
Category:
Interface IC, Interface Controller
Package:
SOIC-16
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS AM26LV32CD Driver Line, RS422, Differential Line Receiver, 3V-3.6V in, 5mA out, SOIC-16
Stock Locations:
Availability:
193 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.75

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The AM26LV32CD is a quadruple low-voltage high-speed differential Line Receiver with 3-state outputs. It is designed to be similar to TIA/EIA-422-B and ITU recommendation V.11 receiver with reduced common-mode voltage range due to reduced supply voltage. The device is optimized for balanced bus transmission at switching rate up to 32MHz. The enable function is common to all four receivers and offers a choice of active-high or active-low inputs. The 3-state outputs permit connection directly to a bus-organized system. Each device features receiver high input impedance and input hysteresis for increased noise immunity and input sensitivity of ±200mV over a common-mode input voltage range from -0.3 to 5.5V. When the inputs are open circuited, the outputs are in the high logic state. This device is designed using the Texas Instruments (TI™) proprietary LinIMPACT-C60™ technology, facilitating ultra-low power consumption without sacrificing speed.
Open-circuit, short-circuit and terminated failsafe
Accepts 5V logic inputs with 3.3V VCC
Pin-to-Pin-compatible with AM26C32, AM26LS32 and MB570
27mW Typical ultra-low power dissipation
-0.3 to 5.5V Common-mode range with ±200mV sensitivity
50mV Typical input hysteresis
235mW with four receivers at 32MHz
Green product and no Sb/Br

Show

AM26LV32CD Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	SOIC-16
Supply Voltage (DC)	3.30 V
Supply Current	17 mA
Number of Positions	16 Position
Data Rate	10.0 Mbps
Output Current (Max)	5 mA
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Supply Voltage	3V ~ 3.6V
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	3 V
	Show
Size-Length	9.9 mm
Size-Width	3.91 mm
Size-Height	1.58 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
