Image is for your reference only,please check specifications for details

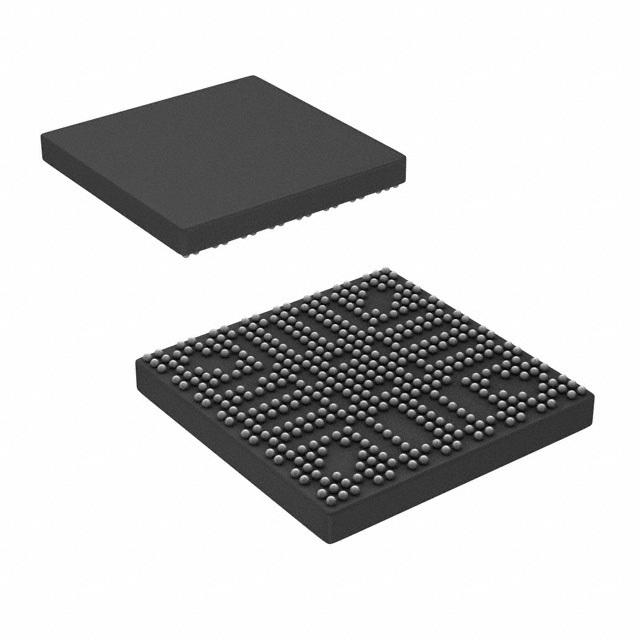

- AM3715CUS100 - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC9427637
-
Category:Microprocessor IC
-
Package:FCBGA-423
-
Datasheet:Datasheet 3D Model
-
Description:TEXAS INSTRUMENTS AM3715CUS100 Microprocessor, ARM Cortex-A8 Series, 1GHz, 1.71V to 1.89V, FCBGA-423
-
Stock Locations:
-
Availability:218 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 37.93
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The ARM Cortex-A8 series Sitara™ High-performance Microprocessor based on the enhanced Cortex™-A8 device architecture and is integrated on TI"s advanced 45nm process technology. This architecture is designed to provide best in class ARM and graphics performance while delivering low power consumption. The device can support numerous high-level operating systems and real-time operating system solutions including Linux android and Windows Embedded CE which are available free of charge directly from TI. Additionally, the device is fully backward compatible with previous Cortex-A8 Sitara microprocessors and OMAP™ processors.
- Compatible with OMAP™ 3 architecture
- Up to 1GHz Sitara™ ARM® Cortex™-A8 core MPU
- PowerVR® SGX™ graphics accelerator
- External memory interfaces - SDRAM controller (SDRC) and general purpose memory controller
- Serial communication - 5 Multichannel buffered serial ports (McBSPs)
- Four master/slave multichannel serial port interface (McSPI) ports
- High-speed/full-speed/low-speed USB OTG subsystem (12-/8-pin ULPI interface)
- One HDQ/1-wire interface
- Four UARTs (one with infrared data association (IrDA) and consumer infrared (CIR) modes)
- Camera image signal processing (ISP)
- System direct memory access (SDMA) controller (32 logical channels with configurable priority)
- Comprehensive power, reset and clock management
- Sitara™ ARM® Cortex™-A8 core
- NEON multimedia architecture
- Supports both integer and floating-point SIMD
- Jazelle® RCT execution environment architecture
- ARM Cortex-A8 memory architecture - 32kB instruction cache (4-way set-associative)
- 32kB ROM
- 64kB Shared SRAM
- Removable media interfaces
AM3715CUS100 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 423 Pin |
| Case/Package | FCBGA-423 |
| Frequency | 1000 MHz |
| Supply Voltage (DC) | 1.71V (min) |
| Clock Speed | 1000800 MHz |
| RAM Memory Size | 64 KB |
| Number of Bits | 32 Bit |
| Number of UARTs | 4 UART |
| Operating Temperature (Max) | 90 ℃ |
| Operating Temperature (Min) | 0 ℃ |
| Supply Voltage (Max) | 1.89 V |
| Supply Voltage (Min) | 1.71 V |
| Show | |
| Operating Temperature | 0℃ ~ 90℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tray |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/06/15 |
| ECCN Code | 5A992.c |
| HK STC License | NLR |
