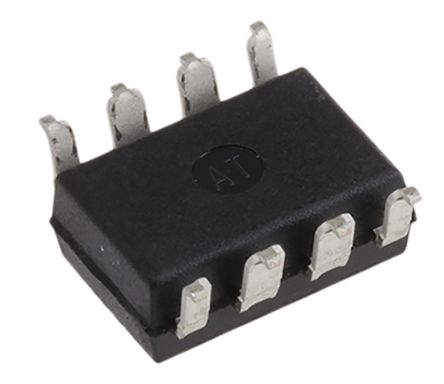

Image is for your reference only,please check specifications for details
- HCPL2631SD - ON Semiconductor
-
Manufacturer:ON Semiconductor
-
ManyChip's Part#:MC1329339
-
Category:Optocoupler, Optoisolator
-
Package:PDIP-8
-
Datasheet:Datasheet 3D Model
-
Description:Optocoupler Logic-Out Open Collector DC-IN 2CH 8Pin PDIP SMD Black T/R
-
Stock Locations:
-
Availability:9,900 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 3.07
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The 6N137, HCPL2601, HCPL2611 single-channel and HCPL2630, HCPL2631 dual-channel optocouplers consist of a 850 nm AlGaAS LED, optically coupled to a very high speed integrated photo-detector logic gate with a strobable output. This output features an open collector, thereby permitting wired OR outputs. The coupled parameters are guaranteed over the temperature range of -40°C to +85°C. A maximum input signal of 5mA will provide a minimum output sink current of 13mA (fan out of 8).An internal noise shield provides superior common mode rejection of typically 10kV/µs. The HCPL2601 and HCPL2631 has a minimum CMR of 5kV/µs. The HCPL2611 has a minimum CMR of 10kV/µs.
- Features
- ---
- |
- Very high speed – 10 MBit/s
- Superior CMR – 10 kV/µs
- Double working voltage-480V
- Fan-out of 8 over -40°C to +85°C
- Logic gate output
- Strobable output
- Wired OR-open collector
- U.L. recognized (File # E90700)
HCPL2631SD Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | PDIP-8 |
| Rise/Fall Time | 50ns, 12ns |
| Output Current | 0.05 A |
| Number of Channels | 2 Channel |
| Number of Positions | 8 Position |
| Forward Voltage | 1.4 V |
| Power Dissipation | 0.06 W |
| Rise Time | 0.05 µs |
| Isolation Voltage | 2500 Vrms |
| Forward Current | 30 mA |
| Input Current (Min) | 30 mA |
| Reverse Breakdown Voltage | 5 V |
| Maximum Forward Voltage (Max) | 1.75 V |
| Forward Current (Max) | 30 mA |
| Fall Time | 0.012 µs |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 60 mW |
| Supply Voltage | 4.5V ~ 5.5V |
| Show | |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
