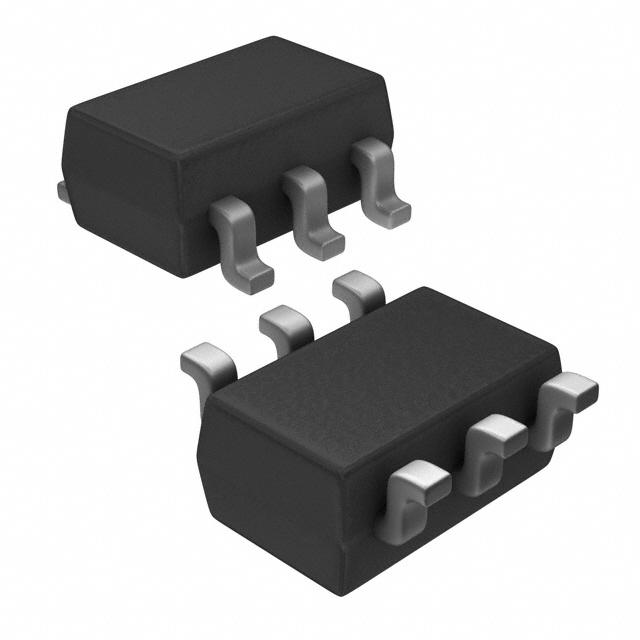

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Create an effective common drain amplifier using this AO6602L power MOSFET from Alpha & Omega Semiconductor. Its maximum power dissipation is 1150 mW. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This MOSFET transistor has a minimum operating temperature of -55 °C and a maximum of 150 °C. This N|P channel MOSFET transistor operates in enhancement mode. This device is made with tmos technology.

Show

AO6602L Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	SOT-457
Polarity	N+P
Power Dissipation	1150 mW
Drain to Source Voltage (Vds)	30 V
Continuous Drain Current (Ids)	3.1A/2.7A
Input Capacitance (Ciss)	240pF @15V(Vds)
Input Power (Max)	1.15 W
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	1.15 W
	Show
Size-Height	1.1 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Last Time Buy
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
