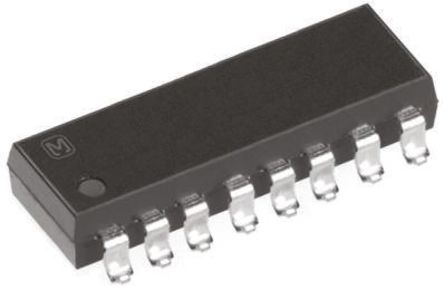

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- * Built-In Input Resistor for Less Man-Hours
- * The Voltage-Sensitive Type Eliminates the Need to Mount an External Input Resistor, Which Cuts Man-Hours for Mounting and Simplifies Board Designing
- * Space Saving on PC Board
- * The Small Package Size Including a Built-In Resistor Helps Space Savings When Designing Miniature Devices
AQS221N2S Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 16 Pin |
| Case/Package | SOP-16 |
| Current Rating | 0.06 A |
| Capacitance | 1.5 pF |
| Output Voltage | 0V ~ 40V |
| Contacts Type | 4PST |
| Load Current | 60 mA |
| Isolation Voltage | 500 V |
| Forward Current | 900 µA |
| Input Voltage (Max) | 1.5 V |
| Output Voltage (Max) | 40 V |
| Output Current (Max) | 0.06 A |
| Input Current (Min) | 50 mA |
| Load Current (Max) | 0.06 A |
| Load Current (Min) | 0.06 A |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Voltage Rating | 40 VAC |
| Input Voltage | 1.25 VDC |
| Show | |
| Size-Length | 10.37 mm |
| Size-Width | 4.4 mm |
| Size-Height | 2.1 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
