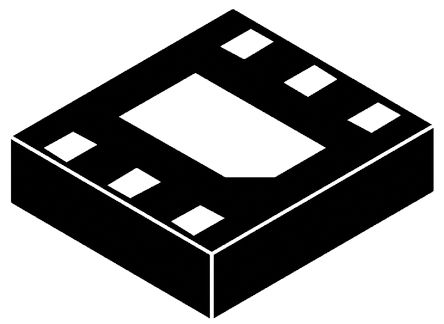

Image is for your reference only,please check specifications for details

AS11P2TLRQ - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC40989740
Category:
Analog Switch Ic, Analog Switch Multiplexer
Package:
DFN-6
Datasheet:
Datasheet 3D Model
Description:
STMICROELECTRONICS AS11P2TLRQ Analog Multiplexer / Demultiplexer, 2:1, 1 Circuit, 3Ω, 1.65V to 4.5V, DFN-6
Stock Locations:
Availability:
2,541 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.33

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The AS11P2TLR is a high speed CMOS low voltage single analog SPDT (single-pole double-throw) switch or 2:1 multiplexer/demultiplexer switch manufactured using silicon gate C²MOS technology. Designed to operate from a 1.65 to 4.5 V supply, this device is ideal for portable applications.
The device offers very low ON-resistance (1 Ω) at VCC= 4.5 V. Switch S1 is ON (connected to common ports Dn) when the SEL input is held high, and OFF (state of high impedance exists between the two ports) when SEL is held low.
Switch S2 is ON (connected to common port D) when the SEL input is held low, and OFF (state of high impedance exists between the two ports) when SEL is held high.
Additional key features are fast switching speed, break-before-make delay time and ultralow power consumption. All inputs and outputs are equipped with protection circuits to protect against static discharge, giving them immunity from ESD and transient excess voltage.
**Key Features**
1000 V charged-device model (C101)

Show

AS11P2TLRQ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	DFN-6
Number of Outputs	2 Output
Supply Current	100 nA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	6 Position
Power Dissipation	1.12 W
Number of Inputs	1 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	150 MHz
Power Dissipation (Max)	1120 mW
Supply Voltage	1.65V ~ 4.5V
Supply Voltage (Max)	4.5 V
Supply Voltage (Min)	1.65 V
	Show
Size-Length	1.25 mm
Size-Width	1.05 mm
Size-Height	0.5 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
