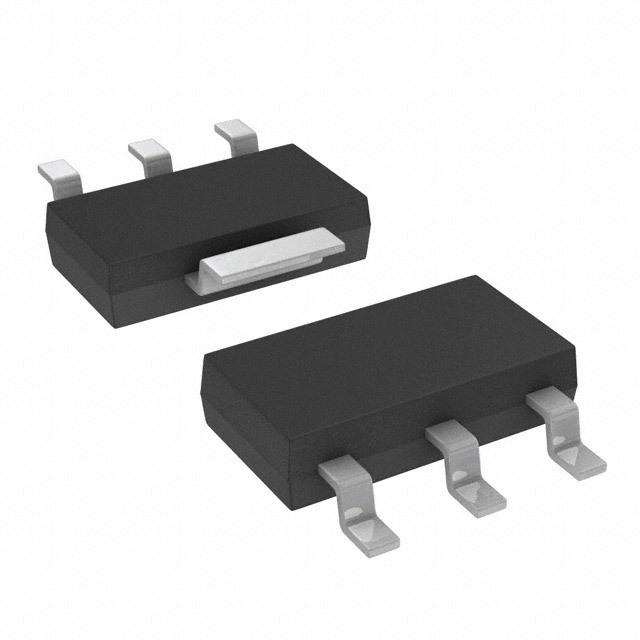

Image is for your reference only,please check specifications for details
Updated at 25/04/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Description:
- The AUS1051L and AUIPS1052G are Intelligent Power Switches (IPS) featuring low side MOSFETs with over-current, over-temperature, ESD protection and drain to source active clamp. The AUIPS1052G is a dual channel device while the AUIPS1051 is a single channel. These devices offer protections and the high reliability required in harsh environments. Each switch provides efficient protection by turning OFF the power MOSFET when the temperature exceeds 165°C or when the drain current reaches 3A. The device restarts once the input is cycled. A serial resistance connected to the input provides the diagnostic. The avalanche capability is significantly enhanced by the active clamp and covers most inductive load demagnetizations.
- Benefits:
- Short-circuit protection
- Over-temperature protection
- 12V application
- Slow and fast devices
- Active clamp
- Low current and logic level input
- ESD protection
- Optimized Turn On/Off for EMI
- Diagnostic on the input current
AUIPS1051L Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Number of Pins | 4 Pin |
| Case/Package | TO-261-4 |
| Number of Outputs | 1 Output |
| Output Current (Max) | 1.3 A |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 2000 mW |
| Input Voltage | 4.5V ~ 5.5V |
| Show | |
| Operating Temperature | -40℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
