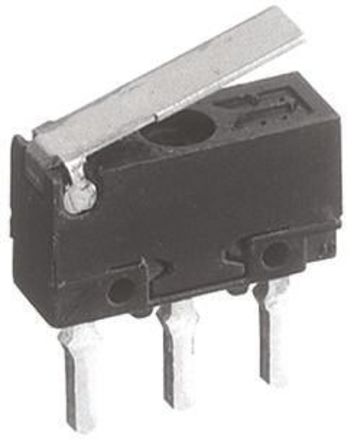

Image is for your reference only,please check specifications for details

AV442461 - Panasonic
Manufacturer:
Panasonic
ManyChip's Part#:
MC14812025
Category:
Switch
Package:
100
Datasheet:
Datasheet 3D Model
Description:
Switch Snap Action N.O./N.C. SPDT Hinge Lever PC Pins 0.1A 30VDC 0.25N Thru-Hole
Stock Locations:
Availability:
322 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.18

Updated at 21/07/2026 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The AV442461 is a super miniature lightweight Snap Action Switch with PC board straight terminals, a hinge lever actuator and gold-plated contacts.
100MR at 250VDC Minimum insulation resistance
200mR Maximum contact resistance
-25 to +80°C Ambient temperature range

Show

AV442461 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Case/Package	100
Voltage Rating (DC)	30 V
Actuator Type	Straight Lever
Current Rating	100mA (DC)
Insulation Resistance	100 MΩ
Contacts Type	SPDT
Contact Resistance	200 mΩ
Contact Current Rating	100mA @30VDC
Current Rating (Max)	0.1A @30VDC
Operating Temperature (Max)	80 ℃
Operating Temperature (Min)	-25 ℃
Voltage Rating (DC Max)	30 V
	Show
Size-Length	7.5 mm
Size-Width	2.5 mm
Size-Height	7.5 mm
Contact Material	Stainless Steel
Operating Temperature	-25℃ ~ 80℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
