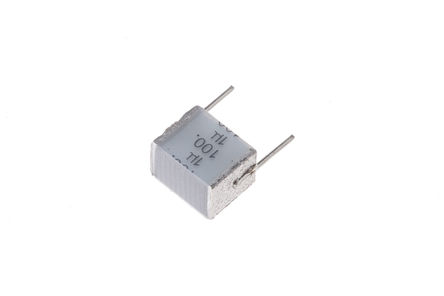

Image is for your reference only,please check specifications for details
- B32560J1105K - Epcos
-
Manufacturer:Epcos
-
ManyChip's Part#:MC102938886
-
Category:Film Capacitor
-
Package:DIP-2
-
Datasheet:Datasheet 3D Model
-
Description:Epcos 1uF +/-10% 100V dc, 63V ac, B32560 Through Hole Polyester Film Capacitor
-
Stock Locations:
-
Availability:1,251 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.77
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Typical applications
- SMPS, converter
- Electronic ballasts
- Compact fluorescent lamps (CFL)
- Ignition
- Climatic
- Max. operating temperature: 125 °C
- Climatic category (IEC 60068-1): 55/125/56
- Features
- Special dimensions available on request
- High pulse strength
- Small dimensions
- Construction
- Dielectric: polyethylene terephthalate
- (polyester, PET)
- Stacked-film technology
- Uncoated
- Terminals
- Parallel wire leads, lead-free tinned
- Special lead lengths available on request
- Marking
- Rated capacitance (coded), rated DC voltage
B32560J1105K Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 2 Pin |
| Case/Package | DIP-2 |
| Voltage Rating (DC) | 100 V |
| Voltage Rating (AC) | 63 V |
| Capacitance | 1 µF |
| Capacitance Tolerance | ±10 % |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Voltage Rating | 100 VDC |
| Show | |
| Size-Length | 9 mm |
| Size-Width | 5.5 mm |
| Size-Height | 7 mm |
| Dielectric Material | Polyester |
| Operating Temperature | -55℃ ~ 125℃ |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
