B82111E0000C025 Epcos - Inductor - ManyChip Electronics

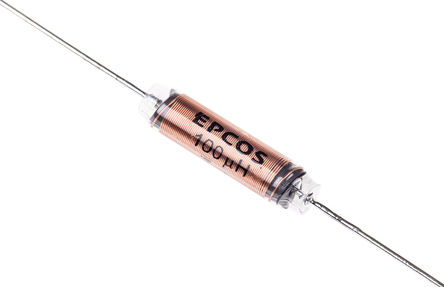

Image is for your reference only,please check specifications for details

B82111E0000C025 - Epcos
Manufacturer:
Epcos
ManyChip's Part#:
MC4233280
Category:
Inductor
Datasheet:
Datasheet 3D Model
Description:
EPCOS B82111E0000C025 осевой высокочастотный дроссель, серия B82111E, 100мкГн, 1А, 0.65Ом, ±20%, 55МГц
Stock Locations:
Availability:
310 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.59

Updated at 16/09/2026 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

B82111EC25 — это ВЧ-дроссель, выполненный на ферритовом цилиндрическом сердечнике с обмоткой из медного эмалированного провода и полиэфирной изоляционной трубкой. Высокая резонансная частота. Широкий диапазон индуктивностей. Конструкция соответствует EN 60938. Подходит для пайки волной. Выводы горячего лужения чистым оловом.
Номинальная температура 60°C

Show

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Axial
Number of Pins	2 Pin
Current Rating	1.00 A
Capacitance Tolerance	±20 %
Inductance	100 µH
Self Resonant Frequency	55 MHz
Resonant Frequency	55.0 MHz
Inductance Tolerance	±20 %
Test Frequency	0.1 MHz
Current Rating (DC)	1 A
Resistance (DC Max)	0.65 Ω
	Show
Size-Length	27.4 mm
Size-Height	26.0 mm
Size-Diameter	6.50 mm
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
