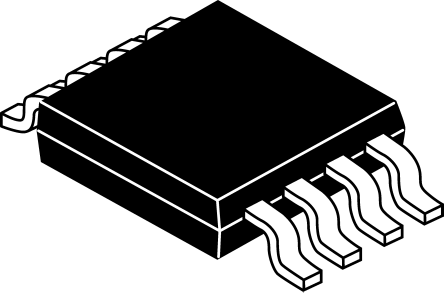

Image is for your reference only,please check specifications for details

MC33202DMR2G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC4618111
Category:
Operational Amplifier, OP Amp IC
Package:
Micro-8
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR MC33202DMR2G Operational Amplifier, Dual, 2.2MHz, 2 Amplifier, 1V/s, 1.8V to 12V, SOIC, 8Pins
Stock Locations:
Availability:
4,876 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.7

Updated at 29/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The MC33202DMR2G is a low voltage dual Operational Amplifier provides rail-to-rail operation on both the input and output. The inputs can be driven as high as 200mV beyond the supply rails without phase reversal on the outputs and the output can swing within 50mV of each rail. This rail-to-rail operation enables the user to make full use of the supply voltage range available. It is designed to work at very low supply voltages (±0.9V) yet can operate with a supply of up to +12V and ground. Output current boosting techniques provide a high output current capability while keeping the drain current of the amplifier to a minimum. Also, the combination of low noise and distortion with a high slew rate and drive capability make this amplifier.
Low voltage, single supply operation
Input voltage range includes both supply rails
No phase reversal on the output for over-driven input signals
High output current (ISC=80mA, typical)
Low supply current (ID=0.9mA, typical)
Output voltage swings within 50mV of both rails
600R Output drive capability

Show

MC33202DMR2G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	Micro-8
Halogen Free Status	Halogen Free
Output Current	80 mA
Supply Current	900 µA
Number of Circuits	2 Circuit
Number of Channels	2 Channel
Number of Positions	8 Position
Common Mode Rejection Ratio	90 dB
Bandwidth	2.2 MHz
Slew Rate	1.00 V/μs
Gain Bandwidth Product	2.2 MHz
Input Offset Voltage	8 mV
Input Bias Current	80 nA
Operating Temperature (Max)	105 ℃
Operating Temperature (Min)	-40 ℃
Gain Bandwidth	2.2 MHz
Minimum CMRR Range	60 dB
Supply Voltage	1.8V ~ 12V
Supply Voltage (Max)	12 V
Supply Voltage (Min)	1.8 V
Input Voltage	0V ~ 5V
	Show
Size-Length	3.1 mm
Size-Width	3.1 mm
Size-Height	0.95 mm
Operating Temperature	-40℃ ~ 105℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
