Description
- The B82144A series from EPCOS are axial leaded bobbin core (BC) RF chokes for general purpose applications. These chokes are made up of large ferrite drum core with enamel copper wire winding. B82144A series RF chokes are suitable for RF blocking and filtering, decoupling and interference suppression, antenna systems and energy saving lamps.
- Wide inductance value ranges from 1µH to 10000µH
- Rated current range from 20mA to 2200mA
- Operating temperature range 40°C
- ±3%, ±5% and ±10% tolerance
- Base material is CuAg0.1
- Compliant to IEC 60062 standards
- Compliant to climatic category IEC 60068-155/125/56

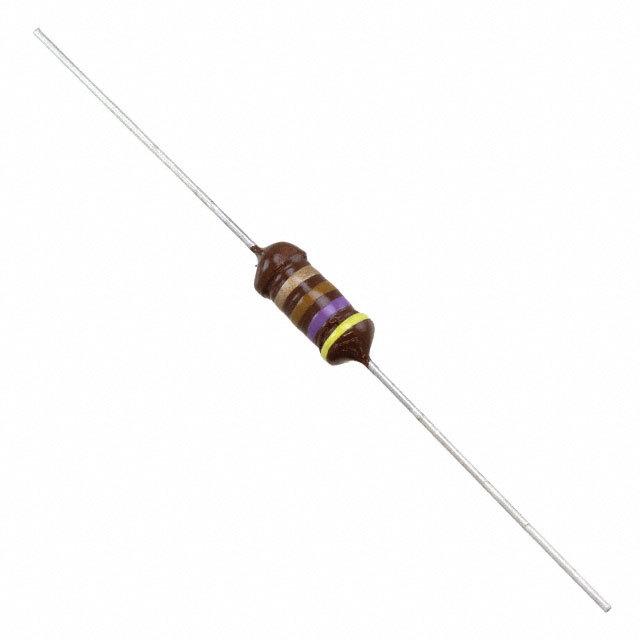

B82144A2474J Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 2 Pin |
| Current Rating | 280 mA |
| Capacitance Tolerance | ±5 % |
| Inductance | 470 µH |
| Self Resonant Frequency | 1.5 MHz |
| Q-Factor | 40.0 |
| Resistance | 2.50 Ω |
| Resonant Frequency | 1.50 MHz |
| Inductance Tolerance | ±5 % |
| Test Frequency | 100 kHz |
| DC Resistance (DCR) | ≤2.5 Ω |
| Current Rating (DC) | 280 mA |
| Resistance (DC Max) | 2.5 Ω |
| Show | |
| Operating Temperature | -55℃ ~ 125℃ |
| Packaging | Each |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/06/15 |
