B82422H1104K EPCOS - Inductor Surface Mount

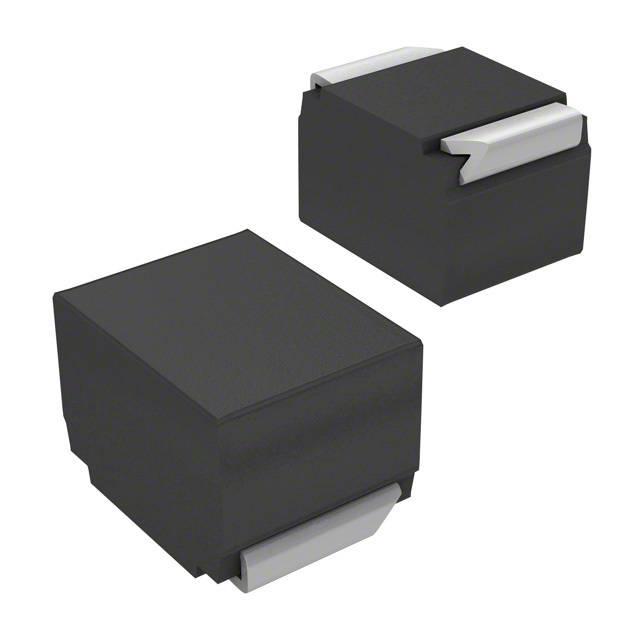

Image is for your reference only,please check specifications for details

B82422H1104K - EPCOS
Manufacturer:
EPCOS
ManyChip's Part#:
MC96082936
Category:
Inductor Surface Mount
Package:
1210
Datasheet:
Datasheet 3D Model
Description:
Индуктивный чип с проводом из латуни, с индексом емкости 100 мкФ, частотой 796 кГц, количеством элементов 20, коэффициентом Ферми 10%, питательной способностью 150 мА, сопротивлением DCR 4,8 Ом при номинальном токе 1210.
Stock Locations:
Availability:
2,181 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.56

Updated at 31/10/2026 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

B82422H1104K Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package (SI)	3225
Case/Package	1210
Current Rating	150 mA
Inductance	100 µH
Self Resonant Frequency	8 MHz
Q-Factor	20.0
Resistance	4.80 Ω
Resonant Frequency	8.00 MHz
Shielding	No
Inductance Tolerance	±10 %
Test Frequency	0.796 MHz
DC Resistance (DCR)	≤4.800 Ω
Current Rating (DC)	150 mA
Operating Temperature (Max)	150 ℃
Resistance (DC Max)	4.8 Ω
	Show
Size-Length	3.20 mm
Size-Width	2.5 mm
Size-Height	2.2 mm
Weight	50.0 mg
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
