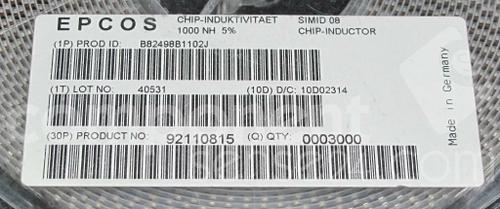

Image is for your reference only,please check specifications for details

B82498B1102J - Epcos
Manufacturer:
Epcos
ManyChip's Part#:
MC125207083
Category:
Inductor Surface Mount
Package:
0805
Datasheet:
Datasheet 3D Model
Description:
Inductor General Purpose Chip Wirewound 1uH 5% 7.96MHz 20Q-Factor Ferrite 250mA 500mOhm DCR 0805
Stock Locations:
Availability:
1,805 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.67

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The B82498B1102J is a surface mount High Frequency Inductor features cubic coil with ceramic or ferrite core. This B82498B inductor comes with partially plastic-sealed windings, winding ends welded to terminals. This Inductor"s terminals are made of Al2O3 ceramic or ferrite base and thick-film coating of Ag/Pd/Pt termination. Supports 350MHz resonance frequency and ±5% of inductance tolerance. It is suitable for reflow soldering.
High Q factor
High resonance frequency
Close inductance tolerance

Show

B82498B1102J Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Number of Pins	2 Pin
Case/Package (SI)	2012
Case/Package	0805
Current Rating	250 mA
Inductance	1 µH
Self Resonant Frequency	350 MHz
Q-Factor	20.0
Resistance	500 mΩ
Resonant Frequency	350 MHz
Inductance Tolerance	±5 %
Test Frequency	7.96 MHz
Current Rating (DC)	250 mA
Resistance (DC Max)	0.5 Ω
	Show
Size-Length	2.2 mm
Size-Width	1.2 mm
Size-Height	1.45 mm
Operating Temperature	-55℃ ~ 125℃
Packaging	Cut Tape (CT)
RoHS	Non-Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
