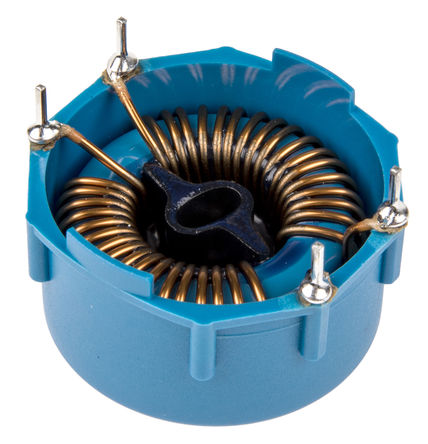

Image is for your reference only,please check specifications for details

B82725A2103N001 - Epcos
Manufacturer:
Epcos
ManyChip's Part#:
MC16409745
Category:
Inductor Choke
Package:
Horizontal, 4 PC Pin
Datasheet:
Datasheet 3D Model
Description:
Common Mode Choke Through Hole Power Line 10A 2 Lines 14mOhm (Typ) -40℃ ~ 125℃
Stock Locations:
Availability:
1,762 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 6.89

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The B82725A series current-compensated ring core double Power Line Choke suitable for suppression of common-mode interference, electronic ballast in lamp, power inverter and switch-mode power applications. This B82725A series made of polycarbonate case and polyurethane potting with hot dipped tin over nickel terminals.
High resonance frequency due to special winding technique
Ferrite core with epoxy coating
Sector winding
1% Stray inductance for symmetrical interference suppression
Suitable for wave soldering
Design complies with EN 60938-2 (VDE 0565-2) and UL 1283
UL94V-0 Flammability rating

Show

B82725A2103N001 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Case/Package	Horizontal, 4 PC Pin
Voltage Rating (AC)	250 V
Current Rating	10 A
Capacitance Tolerance	±30 %
Flammability Rating	UL 94 V-0
Inductance	1.8 mH
Test Frequency	10 kHz
Current Rating (Max)	10 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating	250 VAC
Resistance (DC Max)	14 mΩ
	Show
Size-Length	44 mm
Size-Width	42.4 mm
Size-Height	25 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Box
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
