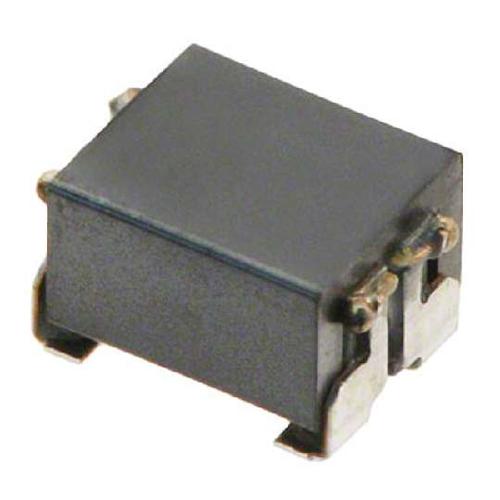

Image is for your reference only,please check specifications for details
- B82789C513N2 - Epcos
-
Manufacturer:Epcos
-
ManyChip's Part#:MC54389838
-
Category:Inductor Choke
-
Package:1812
-
Datasheet:Datasheet 3D Model
-
Description:Common Mode Chokes Dual 51uH 100kHz 250mA 550mOhm DCR SMD Automotive T/R
-
Stock Locations:
-
Availability:9,956 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.55
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
B82789C513N2 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 2 Pin |
| Case/Package | 1812 |
| Voltage Rating (DC) | 80 V |
| Voltage Rating (AC) | 42 V |
| Current Rating | 250 mA |
| Inductance | 51 µH |
| Resistance | 450 mΩ |
| Test Frequency | 100 kHz |
| DC Resistance (DCR) | 0.55 Ω |
| Current Rating (Max) | 250 mA |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Voltage Rating | 42 VAC |
| Resistance (DC Max) | 550 mΩ |
| Show | |
| Size-Height | 3 mm |
| Weight | 25.0 g |
| Operating Temperature | -55℃ ~ 125℃ |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
