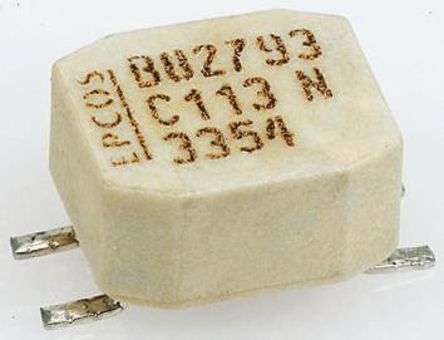

Image is for your reference only,please check specifications for details
- B82793S0253N201 - Epcos
-
Manufacturer:Epcos
-
ManyChip's Part#:MC58716914
-
Category:Inductor Choke
-
Package:7.1mm x 6mm x 4.8mm
-
Datasheet:Datasheet 3D Model
-
Description:EPCOS B82793S0253N201 Дроссель, синфазный, 25 мкГн, серия B82793S0, 800 мА, 7.1 мм x 6 мм x 4.8 мм
-
Stock Locations:
-
Availability:1,640 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.09
Updated at 16/09/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Серия B82793S0 — синфазный дроссель для линий данных и сигналов, подходящий для шины CAN, а также типы с LR > 4,7 мГн только для телекоммуникационных применений.
- Ферритовый сердечник с эпоксидным покрытием
- Силиконовая заливка
- Секторная обмотка
- Высокие номинальные токи, уменьшенная высота компонентов
- Квалифицирован по стандарту AEC-Q200
- Подходит для оплавления пайки
B82793S0253N201 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 4 Pin |
| Case/Package | 7.1mm x 6mm x 4.8mm |
| Current Rating | 800 mA |
| Capacitance Tolerance | ±30 % |
| Inductance | 25 µH |
| Resistance | 110 mΩ |
| Resistance (DC Max) | 110 mΩ |
| Show | |
| Size-Length | 7.1 mm |
| Size-Width | 6 mm |
| Size-Height | 4.8 mm |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/06/15 |
