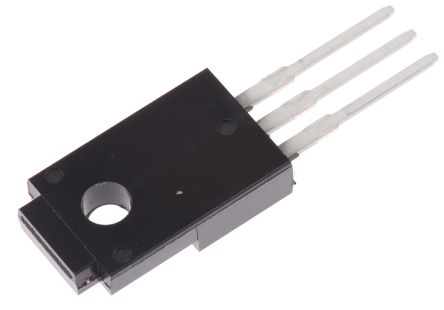

Image is for your reference only,please check specifications for details
- BA17812T - ROHM Semiconductor
-
Manufacturer:ROHM Semiconductor
-
ManyChip's Part#:MC25136262
-
Category:Voltage Regulator
-
Package:TO-220-3
-
Datasheet:Datasheet 3D Model
-
Description:Linear Voltage Regulator, 7812, Fixed, 15V To 27V In, 12V And 1A Out, TO-220FP-3
-
Stock Locations:
-
Availability:9,117 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 3.46
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The BA17812T is a 3-pin fixed positive output Voltage Regulator with 12V output voltage. It is used to provide a stabilized output voltage from a fluctuating DC input voltage. The maximum current capacity is 1A for each of the above voltages.
- Built-in overcurrent protection circuit and thermal shutdown circuit
- Excellent ripple regulation
- Compatible with other manufacturers regulator
- Richly diverse line-up
BA17812T Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 3 Pin |
| Case/Package | TO-220-3 |
| Power Rating | 2 W |
| Number of Outputs | 1 Output |
| Input Voltage (DC) | 27.0V (max) |
| Output Voltage | 12 V |
| Output Current | 1 A |
| Number of Positions | 3 Position |
| Power Dissipation | 22000 mW |
| voltage rating | 2V @1A |
| Input Voltage (Max) | 27 V |
| Input Voltage (Min) | 15 V |
| Output Current (Max) | 1 A |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 22000 mW |
| Input Voltage | 14.5V ~ 27V |
| Show | |
| Size-Length | 10 mm |
| Size-Width | 4.5 mm |
| Size-Height | 8 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Each |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
