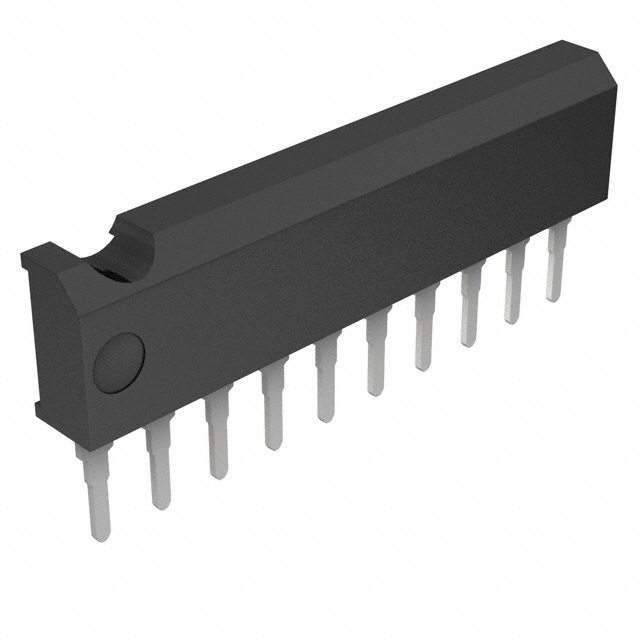

- BA6286N - ROHM Semiconductor
-
Manufacturer:ROHM Semiconductor
-
ManyChip's Part#:MC55820768
-
Category:Motor Driver
-
Package:SIP-10
-
Datasheet:Datasheet 3D Model
-
Description:Одноканальный, 4 режима, 15 В, 1 А, со сквозным монтажом, реверсивный драйвер двигателя - SIP-10
-
Stock Locations:
-
Availability:10,372 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.63
Updated at 16/09/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Микросхемы BA6286 и BA6286N являются драйверами реверсивных двигателей с максимальным выходным током 1,0 А. Два логических входа обеспечивают четыре режима работы: вперед, назад, остановка (холостой ход) и торможение. Встроенная схема энергосбережения снижает потребление тока при остановке двигателя.
- Особенности
- 1) Логическая и силовая секции имеют отдельные выводы заземления; это позволяет микросхеме управлять скоростными реверсивными двигателями путем подключения схемы электронного регулятора.
- 2) Встроенная схема энергосбережения снижает рассеивание тока в режиме остановки.
- 3) Выходное напряжение можно произвольно задавать с помощью вывода VREF.
- 4) Совместимость с TTL-устройствами.
- 5) Встроенная схема тепловой защиты.
- Применение
- Видеомагнитофоны и аудиооборудование в целом.
BA6286N Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Case/Package | SIP-10 |
| Supply Voltage (DC) | 15.0V (max) |
| Output Current | 1 A |
| Operating Temperature (Max) | 75 ℃ |
| Operating Temperature (Min) | -20 ℃ |
| Supply Voltage | 4.5V ~ 15V |
| Show | |
| Operating Temperature | -20℃ ~ 75℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
