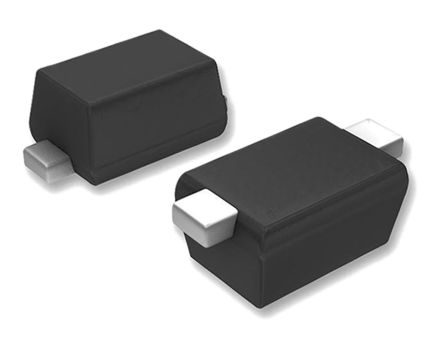

Image is for your reference only,please check specifications for details

BAR6302VH6327XTSA1 - Infineon
Manufacturer:
Infineon
ManyChip's Part#:
MC1528517
Category:
RF diode
Package:
SOD-523-2
Datasheet:
Datasheet 3D Model
Description:
INFINEON BAR6302VH6327XTSA1 RF / Pin Diode, Single, 1Ω, 50V, SC-79, 2Pin, 0.21pF
Stock Locations:
Availability:
202 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.05

Updated at 24/10/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The BAR 63-02V H6327 is a Silicon PIN Diode with single configuration for high speed switching of RF signals. It has very low forward resistance, low insertion loss and suitable for frequencies up to 3GHz.
Very low capacitance (high isolation)
-55 to 125°C Operating temperature range

Show

BAR6302VH6327XTSA1 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	SOD-523-2
Capacitance	0.21 pF
Forward Voltage	1.2 V
Power Dissipation	0.25 W
Forward Current	100 mA
Reverse Breakdown Voltage	50 V
Maximum Forward Voltage (Max)	1.2 V
Forward Current (Max)	100 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	250 mW
	Show
Size-Length	1.2 mm
Size-Width	0.8 mm
Size-Height	0.55 mm
Operating Temperature	150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
