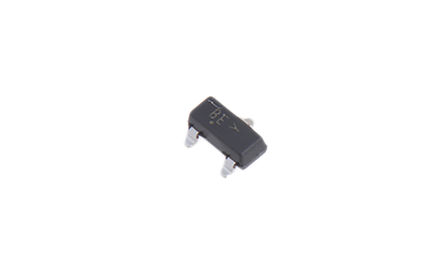

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The BAS70LT1G is a Schottky Barrier Diode designed for high speed switching applications, circuit protection and voltage clamping. It features extremely low forward voltage reduces conduction loss. This miniature surface mount package is excellent for hand held and portable applications, where space is limited.
Extremely fast switching speed
0.75V at IF = 10mADC Low forward voltage (typ.)
AEC Qualified and PPAP capable
Pb-free, halogen free/BFR free

Show

BAS70LT1G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SOT-23-3
Voltage Rating (DC)	70.0 V
Current Rating	30.0 mA
Capacitance	2.00 pF
Halogen Free Status	Halogen Free
Output Current	≤20.0 mA
Number of Positions	3 Position
Forward Voltage	1 V
Polarity	Standard
Power Dissipation	225 mW
Forward Current	70 mA
Max Forward Surge Current (Ifsm)	100 mA
Maximum Forward Voltage (Max)	1 V
Forward Current (Max)	70 mA
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Junction Temperature (Max)	150 ℃
Power Dissipation (Max)	225 mW
	Show
Size-Length	3.04 mm
Size-Width	1.4 mm
Size-Height	1.01 mm
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
