BAT54AFILM ST Microelectronics - Diode Arrays

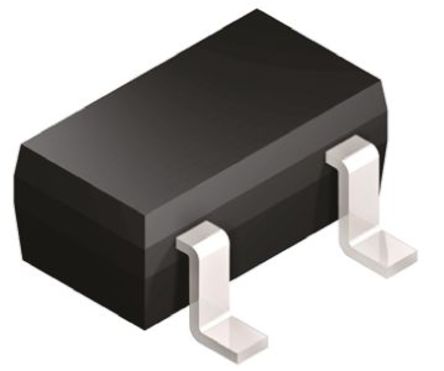

Image is for your reference only,please check specifications for details

BAT54AFILM - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC1277526
Category:
Diode Arrays
Package:
SOT-23-3
Datasheet:
Datasheet 3D Model
Description:
STMICROELECTRONICS BAT54AFILM – диод Шоттки для работы с малыми сигналами, имеет двойной общее анод, способен выдерживать напряжение до 30 В, ток до 200 мА, потребляемое энергия до 400 мВт, максимальная температура нагрева составляет 150°C.
Stock Locations:
Availability:
2,417 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.03

Updated at 12/10/2026 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

BAT54AFILM – это диод Шоттки для работы с малыми сигналами, предназначенный для установки на поверхность печатной платы. Обладает очень быстрым переключением, низкой емкостью и короткими временами восстановления при прямом и обратном токе.
Низкие потери при прохождении тока и при обратном токе
Незначительные потери при переключении
Соответствует стандарту ECOPACK®2
Максимальная температура нагрева в точке соединения составляет 150°C

Show

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SOT-23-3
Voltage Rating (DC)	30.0 V
Current Rating	300 mA
Capacitance	10 pF
Number of Positions	3 Position
Forward Voltage	900mV @100mA
Thermal Resistance	500 ℃/W
Reverse recovery time	5 ns
Forward Current	200 mA
Max Forward Surge Current (Ifsm)	600 mA
Maximum Forward Voltage (Max)	400 mV
Forward Current (Max)	300 mA
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
	Show
Size-Length	3.04 mm
Size-Width	1.6 mm
Size-Height	1.4 mm
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
