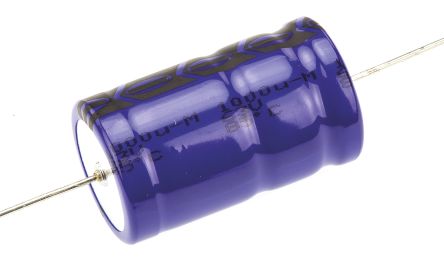

Image is for your reference only,please check specifications for details

MAL202118102E3 - VISHAY
Manufacturer:
VISHAY
ManyChip's Part#:
MC45249879
Category:
Aluminum Electrolytic Capacitors, Aluminum Capacitors, Capacitors Aluminum
RoHS:
Lead free / RoHS Compliant
Datasheet:
Datasheet 3D Model
Description:
1mF ±20% 63V 1.17A Φ18mm
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The Vishay 021 ASM series are axial leaded, miniature, standard aluminium electrolytic capacitors. The capacitance value ranges from 1µF to 15mF. These capacitors are used in smoothing, filtering, buffering circuits, power supply, audio-video and general purpose applications.
±20% tolerance
Working voltage range of 6.3V to 100V
Operating temperature range -40°C to +85°C
Endurance of 2500hours to 8000hours at 85°C based on case size
Miniaturized, high CV product per unit volume
Charge and discharge proof
Cylindrical aluminium case, insulated with a blue sleeve
Low mounting height boards, vibration and shock resistant

Show

MAL202118102E3 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	Axial, Can
Voltage Rating (DC)	63.0 V
Capacitance	1000 µF
Equivalent Series Resistance (ESR)	135 mΩ
Capacitance Tolerance	±20 %
Part Family	ASM-021
Ripple Current	1.17 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating	63 V
	Show
Size-Length	30 mm
Size-Height	30 mm
Size-Diameter	18.0 mm
Dielectric Material	Aluminum Electrolytic
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Bulk
Life (Hours)	8000h @85℃
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
