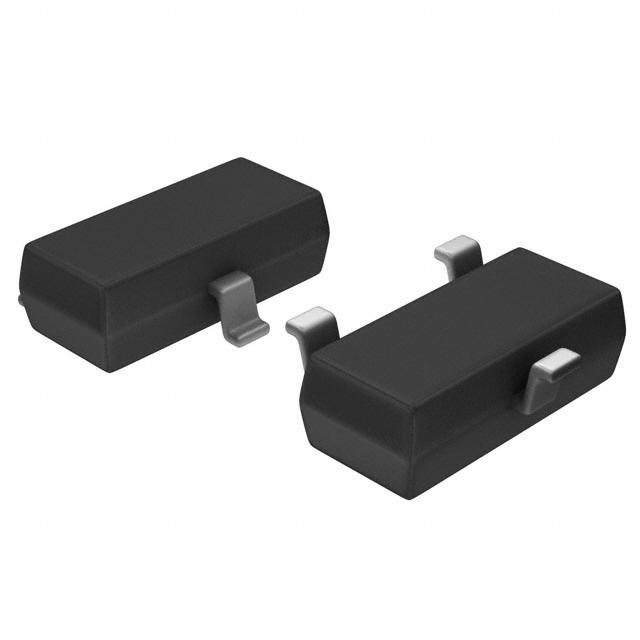

- BAT54CTA - Diodes
-
Manufacturer:Diodes
-
ManyChip's Part#:MC13373304
-
Category:Diode Array, TVS Diode Array
-
RoHS:Lead free / RoHS Compliant
-
Datasheet:Datasheet 3D Model
-
Description:BAT54 Series 200mA 30V 4uA Silicon Epitaxial Schottky Barrier Diode - SOT 23
-
Stock Locations:
-
Availability:9,476 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.03
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- BAT54 Series 200 mA 30 V 4 uA Silicon Epitaxial Schottky Barrier Diode - SOT 23
BAT54CTA Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 3 Pin |
| Case/Package | SOT-23-3 |
| Voltage Rating (DC) | 30.0 V |
| Current Rating | 200 mA |
| Capacitance | 10.0 pF |
| Power Rating | 150 mW |
| Forward Voltage | 1V @100mA |
| Power Dissipation | 330 mW |
| Reverse recovery time | 5 ns |
| Forward Current | 0.2 A |
| Maximum Forward Voltage (Max) | 1V @100mA |
| Forward Current (Max) | 200 mA |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -65 ℃ |
| Junction Temperature | 125℃ (Max) |
| Power Dissipation (Max) | 200 mW |
| Show | |
| Operating Temperature | -65℃ ~ 150℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
