Description

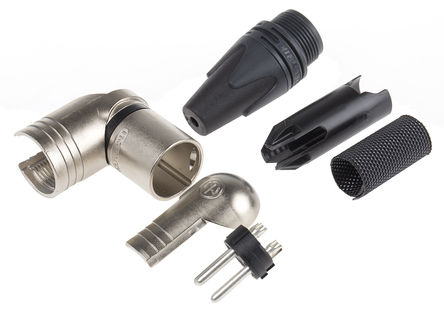

The NC3MRX is a 3-pole Right Angle Male XLR Cable Connector with latch locking device, nickel housing, POM strain relief and silver-plated bronze contacts. It has polyamide insert, polyurethane boot, nickel-plated zinc die-cast shell and zinc die-cast locking element. This RX series connector features reliable, easier to assemble and improves contact integrity as well cable strain relief. Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster, boot with polyurethane gland gives high protection to cable bending stresses.
Extra slim right-angle connector
7 Selectable cable outlet positions
With improved locking recess without window, more stringent housing increases durability
Sleek and ergonomic design - Valuable and handy
UL94HB Flammability rating
IP40 Protection rating
Complies with IEC 61076-2-103 standard
Solderability complies with IEC 68-2-20 standard
* >2GR Insulation resistance
16A Current rating per contact
<50V Voltage rating
-30 to +80°C Temperature range

Show

NC3MRX Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Solder
Number of Pins	3 Pin
Case/Package	Metal
Number of Contacts	3 Contact
Gender	Male
Contact Plating	Silver
Voltage Rating (AC)	50.0 V
Current Rating	16 A
Insulation Resistance	2000 MΩ
Orientation	Right Angle
Flammability Rating	UL 94 HB
Number of Positions	3 Position
Contact Resistance	3.00 mΩ
Number of Mating Cycles	1000 Cycle
Current Rating (Max)	16A/触头
Operating Temperature (Max)	80 ℃
Operating Temperature (Min)	-30 ℃
Voltage Rating (Max)	50 V
Voltage Rating	50 VAC
Maximum Contact Resistance (Max)	3 mΩ
	Show
Size-Length	71.19 mm
Size-Width	20.3 mm
Size-Height	38.5 mm
Color	Nickel
Contact Material	Bronze
Material	Nickel
Operating Temperature	-30℃ ~ 80℃
Housing Material	Zinc Die-Cast
Product Lifecycle Status	Active
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
HTS Code	8536694020
ECCN Code	EAR99
