Description

The Schottky diode is designed for high speed switching applications, circuit protection and voltage clamping. Extremely low forward voltage reduces conduction loss. The miniature surface mount package is excellent for hand held and portable applications where space is limited.
Features
---
|
Pb-Free Package is Available
S and NSV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AECQ101 Qualified and PPAP Capable

Show

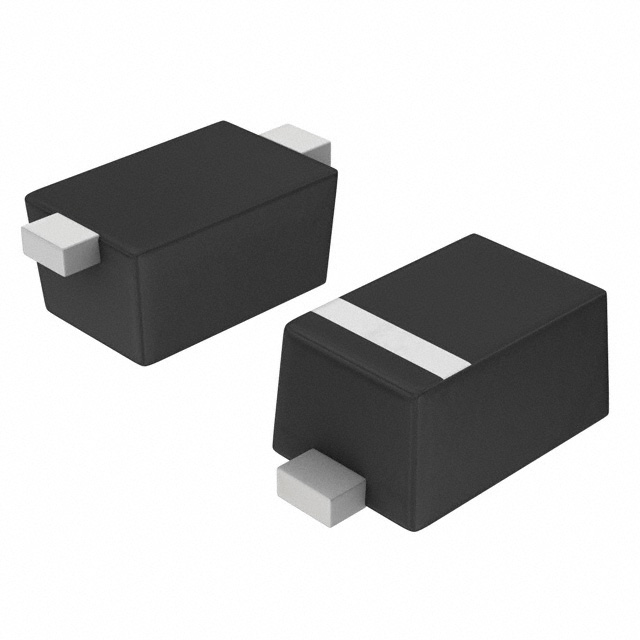

BAT54XV2T1 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Case/Package	SOD-523-2
Voltage Rating (DC)	30.0 V
Current Rating	200 mA
Capacitance	10.0 pF
Output Current	≤200 mA
Forward Voltage	800mV @100mA
Polarity	Standard
Reverse recovery time	5 ns
Forward Current	200 mA
Max Forward Surge Current (Ifsm)	600 mA
Maximum Forward Voltage (Max)	800mV @100mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	55 ℃
Junction Temperature	150℃ (Max)
	Show
Size-Length	1.2 mm
Size-Width	0.8 mm
Size-Height	0.6 mm
Operating Temperature	55℃ ~ 125℃
Product Lifecycle Status	Unknown
Packaging	Cut Tape (CT)
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
