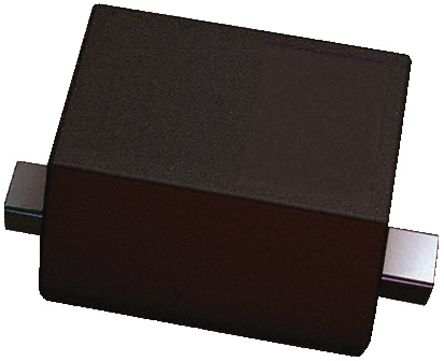

Image is for your reference only,please check specifications for details
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Summary of Features:
- Low barrier diode for detectors up to GHz frequencies
- For high-speed applications
- Zero bias detector diode
- Pb-free (RoHS compliant) package
BAT6302VH6327XTSA1 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 2 Pin |
| Case/Package | SC-79-2 |
| Capacitance | 0.85 pF |
| Load Current | 0.1 A |
| Forward Voltage | 0.3 V |
| Power Dissipation | 100 mW |
| Forward Current | 100 mA |
| Maximum Forward Voltage (Max) | 300 mV |
| Forward Current (Max) | 100 mA |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 100 mW |
| Show | |
| Size-Length | 1.2 mm |
| Size-Width | 0.8 mm |
| Size-Height | 0.55 mm |
| Operating Temperature | 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Cut Tape (CT) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/12/17 |
