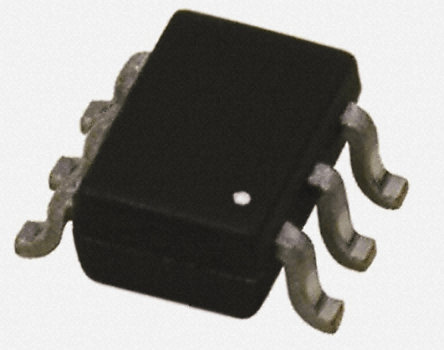

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The BC857BDW1T1G is a dual PNP Bipolar Transistor Array designed for general purpose amplifier applications. It is designed for low power surface-mount applications.
Halogen-free
-55 to 150°C Junction temperature range

Show

BC857BDW1T1G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	SOT-363
Voltage Rating (DC)	-45.0 V
Current Rating	-100 mA
Polarity	PNP, P-Channel
Power Dissipation	380mW
Breakdown Voltage (Collector to Emitter)	-45.0 V
Continuous Collector Current	0.1A
	Show
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
ECCN Code	EAR99
HK STC License	NLR
