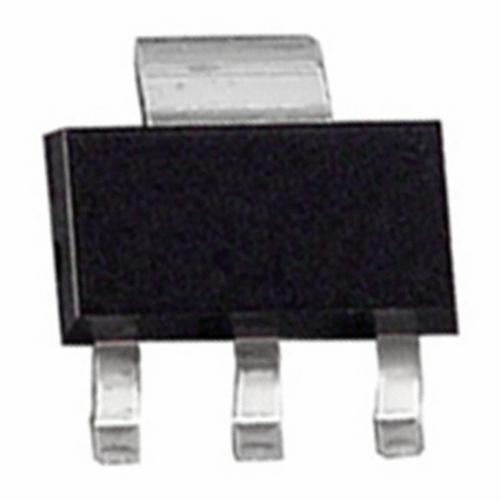

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

• For general AF applications • High collector current • High current gain • Complementary types: BCP28 (PNP)

Show

BCP49 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Case/Package	SOT-223
Power Rating	1.5 W
Polarity	NPN
Breakdown Voltage (Collector to Emitter)	60 V
Continuous Collector Current	0.5A
hFE Min	2000
	Show
Size-Length	6.5 mm
Size-Width	3.5 mm
Size-Height	1.6 mm
Product Lifecycle Status	End of Life
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
