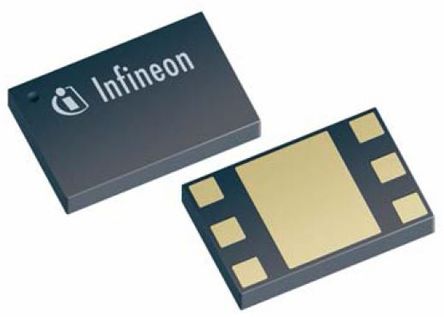

Image is for your reference only,please check specifications for details

BGB741L7ESDE6327XTSA1 - Infineon
Manufacturer:
Infineon
ManyChip's Part#:
MC2858400
Category:
BJT Transistor, BJT
Package:
TSLP-7-1
Datasheet:
Datasheet 3D Model
Description:
Wide Band Low Power, 50MHz Min, 5500MHz Max, 2 X 1.3MM, 0.4MM HEIGHT, HALOGEN FREE AND ROHS COMPLIANT, LEADLESS, TLSP-7-1, SMD, 6Pin
Stock Locations:
Availability:
11,980 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.51

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The BGB 741L7ESD E6327 is a robust low-noise Broadband RF Amplifier MMIC based on Infineon"s reliable high volume silicon germanium carbon bipolar technology. Its integrated feedback provides a broadband pre-match to 50R at input and output up to 3.5GHz and improves the stability against parasitic oscillations. These measures simplify the design of arbitrary LNA application circuits. The integrated active biasing reduces the external parts count and stabilizes the bias current against temperature- and process-variations. The integrated protection elements make the device robust against electrostatic discharge (ESD) and high RF input power levels. The device is highly flexible because the bias current is adjustable and the device works with a broad supply voltage range.
High performance amplifier
High RF input power robustness of 20dBm
Power-OFF function
Halogen-free

Show

BGB741L7ESDE6327XTSA1 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	TSLP-7-1
Frequency	50MHz ~ 3.5GHz
Supply Current	30 mA
Number of Positions	7 Position
Gain	19 dB
Test Frequency	1.5 GHz
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	120 mW
Supply Voltage	1.8V ~ 4V
Supply Voltage (Max)	4 V
Supply Voltage (Min)	1.8 V
	Show
Size-Length	2 mm
Size-Width	1.3 mm
Size-Height	0.45 mm
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
