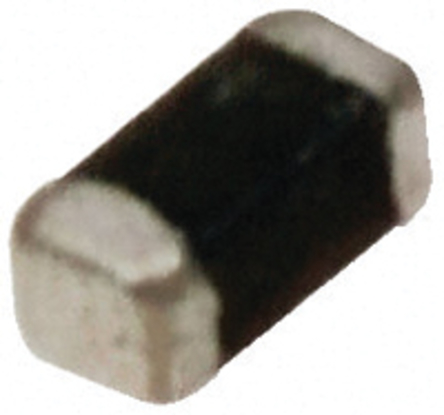

Image is for your reference only,please check specifications for details
- BLM15PD121SN1D - Murata Manufacturing Co., Ltd.
-
Manufacturer:Murata Manufacturing Co., Ltd.
-
ManyChip's Part#:MC64442
-
Category:Ferrites
-
Package:0402
-
Datasheet:Datasheet 3D Model
-
Description:Импеданс 120 Ом, ферритовый сердечник размером 0402 (1005 метрических единиц), установка на поверхность. Предназначен для использования в схемах питания с максимальным током 1,3 А и количеством линий до 1. Максимальное сопротивление прямого контакта составляет 90 мОм. Рабочий диапазон температур от -55°C до 125°C.
-
Stock Locations:
-
Availability:3 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 02/11/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Чип серии BLM15PD имеет ферритовое сердечнике, который при работе на низких частотах функционирует почти как резистор. Это значительно снижает вероятность возникновения резонанса и предотвращает искажение формы сигнальных волн. Серия BLM эффективна в схемах, не имеющих стабильной земляной линии, поскольку не требует соединения с землей. Никельовая структура внешних электродов обеспечивает отличные свойства термостойкости при пайке. Серия BLM15PD подходит для использования в высоковольтных схемах благодаря низкому прямому сопротивлению. Она может использоваться в схемах с максимальным током 6 А в переменном токе.
- Рабочий диапазон температур от -55°C до 125°C.
- Не следует использовать продукты, имеющие большую силу тока, чем указано на корпусе, так как это может привести к чрезмерному нагреву и ухудшению изоляционных свойств.
BLM15PD121SN1D Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Case/Package | 0402 |
| Current Rating | 1.3 A |
| Number of Circuits | 1 Circuit |
| Resistance | 120 Ω |
| Impedance | 120 Ω |
| Test Frequency | 100 MHz |
| DC Resistance (DCR) | 90 mΩ |
| Current Rating (Max) | 1.3 A |
| Current Rating (DC) | 1.3 A |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Accuracy | ±25 % |
| Resistance (DC Max) | 0.09 Ω |
| Show | |
| Size-Length | 1.0 mm |
| Size-Width | 0.5 mm |
| Size-Height | 0.55 mm |
| Material | Ferrite |
| Operating Temperature | -55℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| Minimum Packing Quantity | 10000 |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/12/17 |
| ECCN Code | EAR99 |
| HK STC License | NLR |
